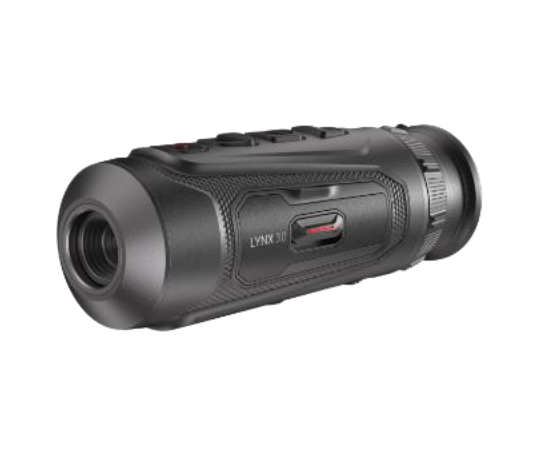

HIKMICRO LE10 3.0 Thermal Monocular (256 × 192)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256 × 192

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: Less than 20 mK (@25°C), F#=1.0

Lens (Focal Length): 9.7 mm, f1.0

Focus Mode: Focus Free

Detection Range: 500 m

Min. Focusing Distance: 3.4 m

Magnification: 1.4× - 11.2× (8×)

Field of View (H × V), Degrees / m @100m: 18.0° × 13.6° / 31.7 m × 23.8 m

Image Display

Display: 1024 × 768, 0.39 inch, AMOLED

Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

Exit Pupil: 6 mm

Eye Relief: 20 mm

Diopter (Range): -5D to +3D

Brightness Adjustment: Yes

Tone Adjustment: Cold, Warm

Contrast Adjustment: Yes

Zoom Pro: N/A

HSIS (HIKMICRO Shutterless Image System): Yes

Image Pro 3.0: Yes

System

Record Video: Yes

Capture Snapshot: Yes

Audio Recording: Yes

Standby Mode: Yes

Built-in Memory: Built-in EMMC (64 GB)

PIP: Yes

Hotspot: 2.4 GHz / 5 GHz Wi-Fi Waveband

Hot Track: Yes

Distance Measurement: Yes

Local Album: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery

Battery Operating Time: 6-hour continuous running with hotspot on (@25°C)

Battery Operating Time: 5.5-hour continuous running with hotspot on (@-20°C)

Type-C Power Supply: 5 V DC, 2 A

External Power Supply: Supports External Power Supply, Support Direct Charging

General

Protection Level: IP67

Dimension: 152.4 × 53.6 × 49.5 mm

Weight: 291.5 g with battery

Working Temperature: From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
