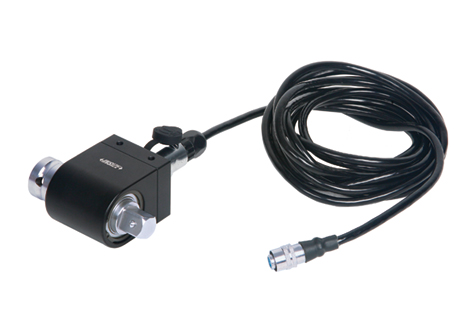

INSIZE IST-IR1 Dynamic Torque Sensors (Compact Type) (1N.m)

Type: type B (square)

Maximum range: 1N.m

RPM range: ≤3000rpm

Torque signal: 0.8~1.5mV/V

Zero output: ±2%F.S.

Accuracy: ±0.2%F.S.

Response time: 1.0ms (50% response)

Response frequency: 1kHz

Max. torsion angle: 2.6×10rad (0.149°)

Inertial torque: 0.38kg.cm

Intrinsic frequency of rotor vibration: 19.4kHz

Torque constant: 3.85×10N.m/rad

Material: alloy steel

Annual stability: 0.3%/year

Load resistance: >2kΩ

Power supply: DC5~15V

Working environment temperature: -10~50°C

Working environment humidity: ≤85%RH

Safety overload: 150%

Extreme overload: 200%

Cable specification: Ø5mm×3m

Extreme cable pulling force: 10kg
