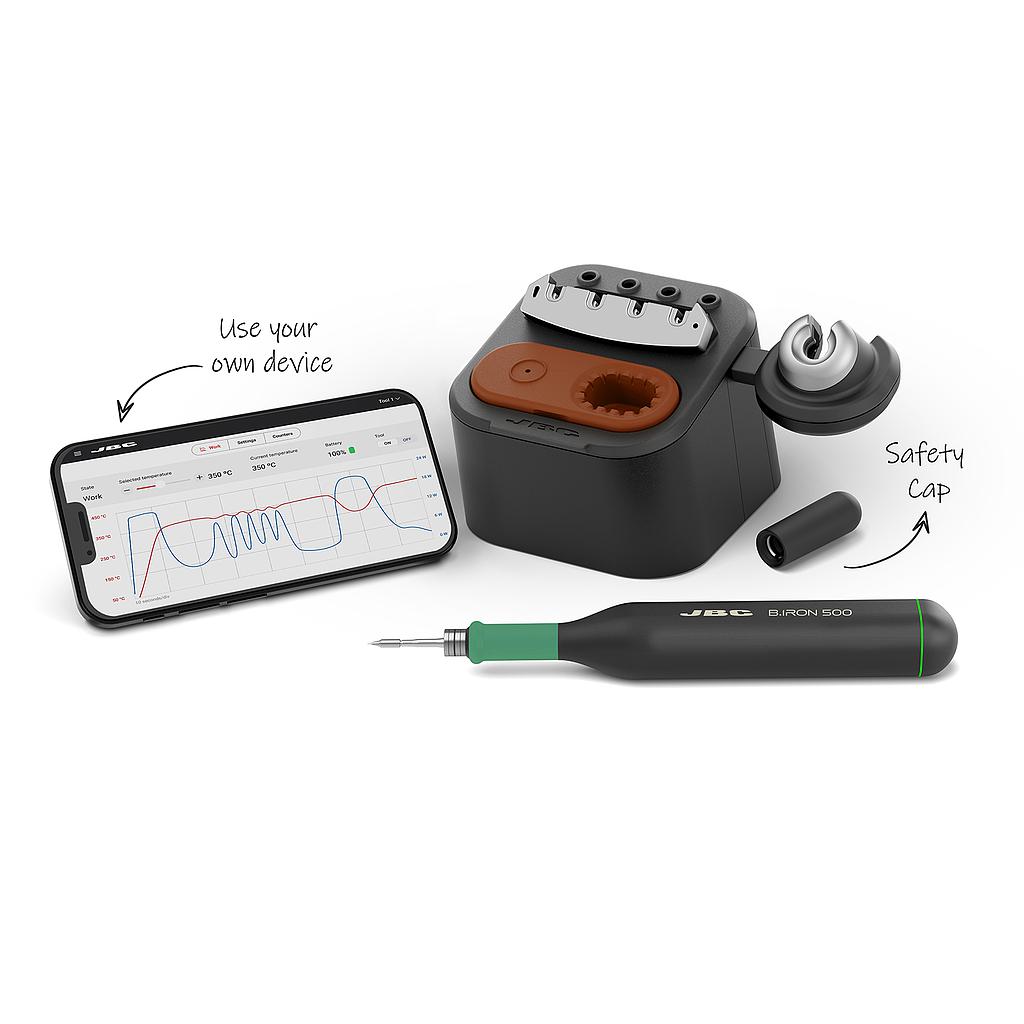

JBC BIS-5QC Battery-Powered Soldering Station (Without Portable Display)

Charging Base

Input voltage: 100 V - 240 V 50/60 Hz

Power: 40 W

Tool output: 12 V / 1000 mA

USB output: 5 V / 1000 mA

Tool

Output peak power: 24 W

Battery: Li-Ion 7.4 V / 750 mAh

Charge time: 60 minutes

Selectable temperature: 100 to 450 ºC / 210 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF

Temperature accuracy: ±3 % (using reference cartridge)

Connections: Bluetooth Low Energy (BLE)

Ambient operating temp: 10 - 50 ºC / 50 - 122 ºF

Tool weight: 70 g / 0.154 lb

Console

Screen size: 8.6"

Connectivity: Bluetooth 5.0

Battery: Li-Ion 3.7 V / 5000 mAh

Weight and Dimensions

System dimensions: 202 × 200 × 211 mm

System weight: 2.08 kg

Dimensions (inch): 7.95 × 7.87 × 8.31 in

Weight (lb): 4.59 lb

Product Composition

1 - Instruction Manual

1 - BCB Charging-Base

1 - B.500 Tool

1 - C210001 Conical Cartridge Ø 0.3

1 - B1596 Safety Cap
