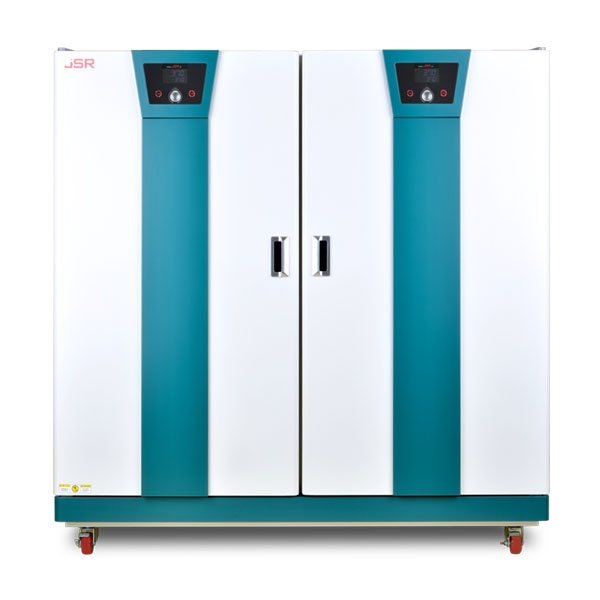

JSR JSGI-250DT General Incubator, Programmable, Dual Chamber (2 Chambers x 250 L; +5 oC ~ +70 oC)

Dimension Data

Chamber Volume: 2 Chambers x 250 Liters

Inner Dims. (W x D x H mm): 500 x 500 x 1000 / Chamber

Outer Dims. (W x D x H mm): 1365 x 735 x 1400 mm

Inner Glass Door (W x H mm): 561 x 1077 mm

No. of Shelf Positions: 36 ea by 25 mm Spacing

No. of Shelves Included: 6 ea

No. of Ventilation Damper: 2 ea

Performance Data

Heating System: Forced Air Convection

Temp. Range: Amb. +5 °C ~ +70 °C

Accuracy: ±0.3 °C at 37.0 °C

Uniformity: ±1.5 °C at 37.0 °C

Heat-Up Time to 37.0 °C: 20 min.

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: Back Light Graphic LCD Display

Panel: UV Coated Polycarbonate Solid Touch Panel

Button: Capacitive Touch LED Lighting Touch Button

Interface: Push and Rotary Encoder Type Jog Dial

Control Logic: 3 Zone PID Control

Calibration:

1 Point Temperature OFFSET

3 Point Temperature Calibration

Resolution: 0.1 °C

Programming: 10 Step Temperature Program, 1 ~ 999 or Unlimited Times Repeat

Auto-Stop Timer: 1 min. ~ 99 hr 59 min.

Auto-Start Timer: 1 min. ~ 99 hr 59 min.

Sensor: CLASS A PT-100 Ω Sensor

Power Restoration: Power and Timer Restoration Function in Case of Power Outage

PC Communication Interface: RS-232C PC Communication Interface [Option]

Safety Data

Safety Device:

Sensor Short or Disconnection Audio Visual Alarm

Controller Cut-Off Heater and Audio Visual Alarm in Case of:

HI-ALARM: +5 °C Above Set Temp.

LO-ALARM: -5 °C Below Set Temp.

Independent Analog Thermostat Cut-Off Heater Above Set Temperature

Door Open Audio Visual Alarm

Over Current Cut-Off

Electrical Data

Rated Voltage: 220 ±10% VAC

Power Frequency: 50 / 60 Hz

Heater Output: 400 W / Chamber

Nominal Power: 410 W / Chamber, 2.0 amp / Chamber

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363

Power Supply: Each Chamber Has Individual Power Supply
