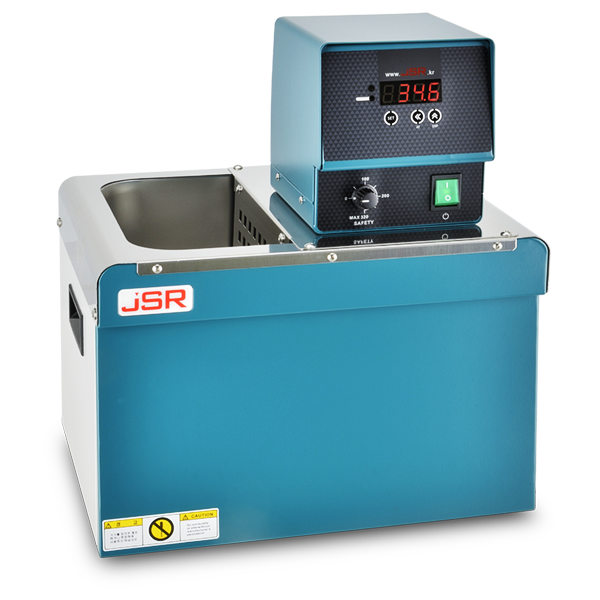

JSR JSIB-11T Immersion Circulation Bath (11 L; 850 Watt)

Bath Capacity: 11 Liters

Inner Dims. (W x D x H): 300 x 240 x 150 mm

Usable Dims. (W x D x H): 120 x 240 x 150 mm

Outer Dims. (W x D x H): 365 x 300 x 410 mm

Temp. Range: Ambient +5℃ ~ +99℃

Accuracy: ±0.1℃ at +37℃

Uniformity: ±0.2℃ at +37℃

Circulation Pump:

Flow Rate: 8 Liter/min

Pressure: 0.3 bar

Control: Microprocessor PID Control with Auto START / STOP Timer

Sensor: Class A PT-100 Ω Sensor

Safety:

Over-Temperature Cut-Off

Over Current Cut-Off

Low Water Level Cut-Off

Material:

Body: Epoxy Powder Coated Steel

Bath: Seamless Stainless Steel 304

Pump: Stainless Steel 304

Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase

Heater Capacity: 850 W

Power Rating: 3.9 amps

Plug Configuration: CEE 7/7 Schuko or BS 1363
