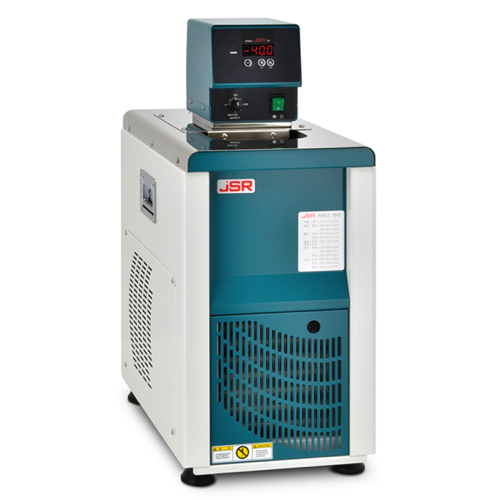

JSR JSRC-06CL Refrigerated Circulation Baths (7 L; 700 Watt)

Bath Capacity: 7.0 Liters

Inner Dims. (W x D x H): 155 x 300 x 150 mm

Usable Dims. (W x D x H): 155 x 90 x 150 mm

Outer Dims. (W x D x H): 290 x 470 x 730 mm

Temp. Range: -40℃ ~ +120℃

Accuracy: ±0.1℃ at -10℃

Uniformity: ±0.3℃ at -10℃

Heating: Stainless Steel 304 Immersion Heater

Cooling: CFC Free Air Cooled Compressor

Circulation Pump:

Flow Rate: 10 Liter/min

Pressure: 0.5 bar

Control: Microprocessor PID Control with Auto START / STOP Timer

Sensor: Class A PT-100 Ω Sensor

Safety:

Over-Temperature Cut-Off

Over Current Cut-Off

Low Water Level Cut-Off

Material:

Body: Epoxy Powder Coated Steel

Bath: Seamless Stainless Steel 304

Pump: Stainless Steel 304

Electrical Requirement: 220 ±10% VAC, 50/60 Hz, 1-Phase

Heater Capacity: 700 Watt

Power Rating: 6.7 amps
