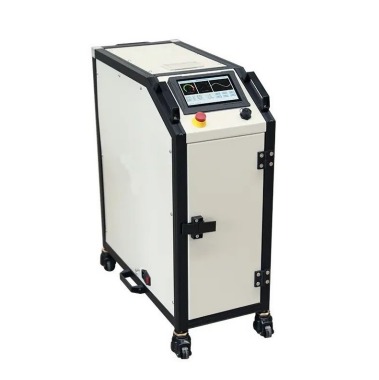

KiloVolt VLF-80 Portable High-voltage Test System

Output voltage (peak): 80 kV

Type wave: sine

Output frequency: 0.1, 0.05, 0.02 Hz (0.01 Hz – option)

Output current: 10 mA

Output voltage accuracy: ± 3 %

Waveform distortion: ± 5 %

Load carrying capacity:

0.1 Hz ≤ 1.1 μF

0.05 Hz ≤ 2.2 μF

0.02 Hz ≤ 5.5 μF

0.01 Hz ≤ 7.0 μF

Power supply: 220

Power frequency: 50/60 Hz

Current consumption: 20 A (peak), 15 A (average)

Power consumption: 3 kW

Power fuse tube: 20 A

Dimensions: 560×240×770 mm

Weight: 65 kg

Operational temperature: -10 to +40 °C

Relative humidity: up to 85 % RH

Datasheet
