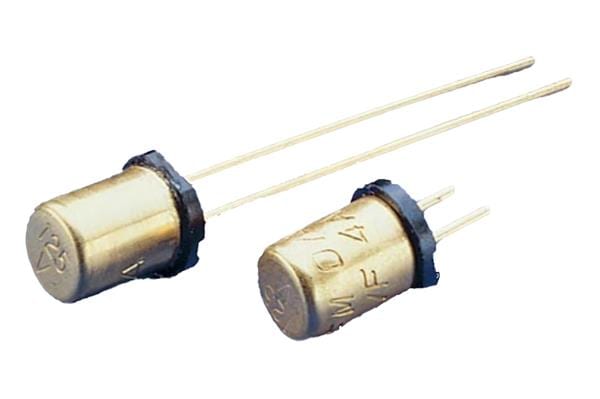

Littelfuse 0268.100V 특수 퓨즈 FUSE 125V V/FA HI REL MICRO RAD .100A

Length: 7.37 mm

Diameter: 5.97 mm

Fuse Type: Fast Blow

Body Style: Leaded Fuses

Resistance: 1.17 Ohms

Current Rating: 100 mA

Indicator Style: Without Indicator

Interrupt Rating: 10 kA at 125 VDC

Fuse Size / Group: MICRO

Termination Style: Radial

Voltage Rating AC: 125 VAC

Voltage Rating DC: 125 VDC

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
