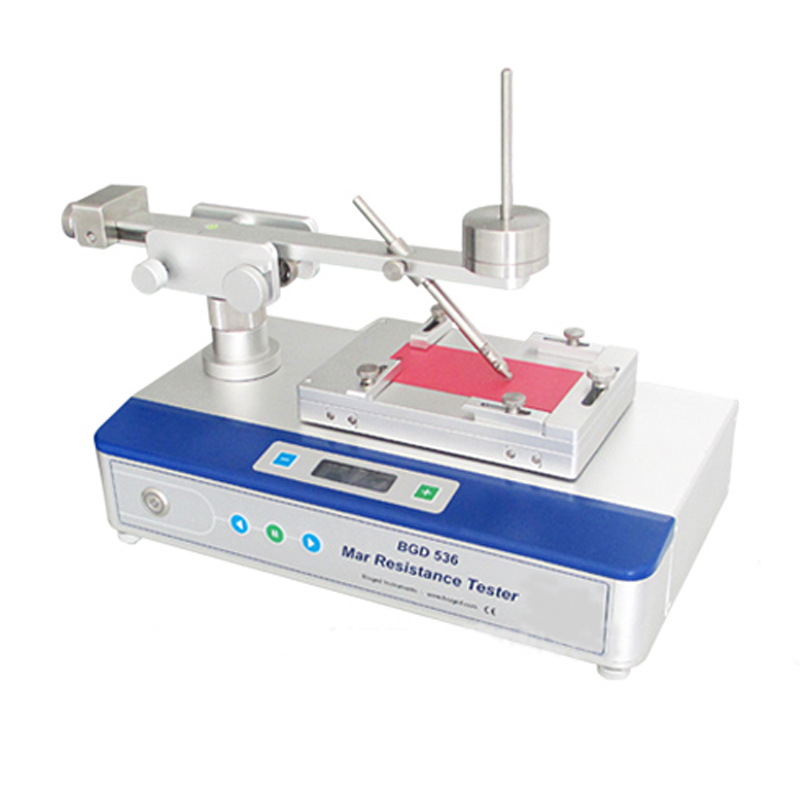

Lonroy BGD 536 Mar Resistance Tester (15 W, 80 mm)

■ Motor Power: 15 W

■ Working Distance: 80 mm

■ Weights: 1×100 gram, 2×200 gram, 1×500 gram, 2×1000 gram, 1×2000 gram

■ Ring-shaped Stylus: Diamter (6.5±0.1)mm, R0.8±0.02, Thickness(1.6±0.02)mm;With smooth surface and hardness is RockWell HRC56 to HRC58 and its surface shall be smooth(roughness≤0.05 μm). BGD 1009 optional

■ Stylus moving speed: 3 mm/s～10 mm/s(step: 0.5mm/s)

■ Angle between stylus with test panels: 45°

■ Suitalbe Test panels Width: 40 mm～110 mm

■ Suitalbe Test panels Thickness: 0 mm～12 mm

■ Power: Input 110～240V AC 50/60Hz(Power adapter output 24V, 2A)

■ Overall Size: 540mm×250mm×375mm(L×W×H)

■ Weight: 15kg
