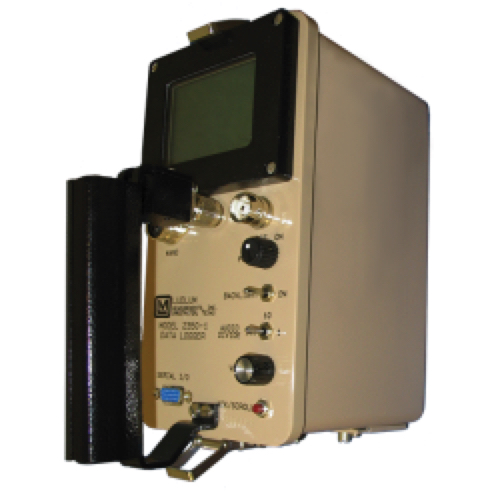

Indicated Use: Field analysis and data logging
Compatible Detectors: GM, Proportional, Scintillation/ Stores up to 16 detector setups
Display: 8-line LCD display with 15 characters per line
Backlight: 2-position toggle switch to turn backlight ON or OFF
Scaler: 6-digit display
Timer: Used in conjunction with scaler. Count time can be set from 1 to 65,535 s in 1 s intervals.
Ratemeter: Digital ratemeter, corrected for dead time and calibration constant
Scale: Can display in rem/hr, Sv/h, R/hr, cpm, cps, dpm, dps, rad(r), Gray(G), C/kg, Ci/cm², or Bq/cm²
Trend Indicator: 5-decade logarithmic bar graph
Data Logger: Capable of logging up to 1000 individual data points with the following identifiers for each point
Detector Parameters: Capable of storing the following parameters for 16 different detectors
Response:
Fixed: Adjustable from 1 to 127 seconds in 1 second intervals
Variable: Will vary according to number of counts present. Typical times from 10% to 90% of final reading, Fast: 4 to 25 s, Slow: 4 to 60 s
High Voltage: Adjustable from 400 to 2500 Vdc
Threshold: Adjustable from -100 to -1000 mVdc
Window: Adjustable from 0 to 1000 mVdc above threshold
Gain: Adjustable from 2 to 350 mV at threshold setting of 100
Dead Time: Adjustable to compensate for dead time of detector and electronics
Audio: Built-in unimorph speaker with volume control
Audio Divide: Operator-selected divisions of 1, 10, or 100 events per click
Temperature Range: 0 to 50 °C (32 to 122 °F) (LCD display limits temperature range)
Power: 4 “D” cell batteries
Size (H x W x L):
14.2 x 11 x 22 cm (5.6 x 4.3 x 8.8 in.) without handle
20.9 x 11 x 22 cm (8.2 x 4.3 x 8.8 in.) with handle
Weight: 2.4 kg (5.2 lb) including batteries
