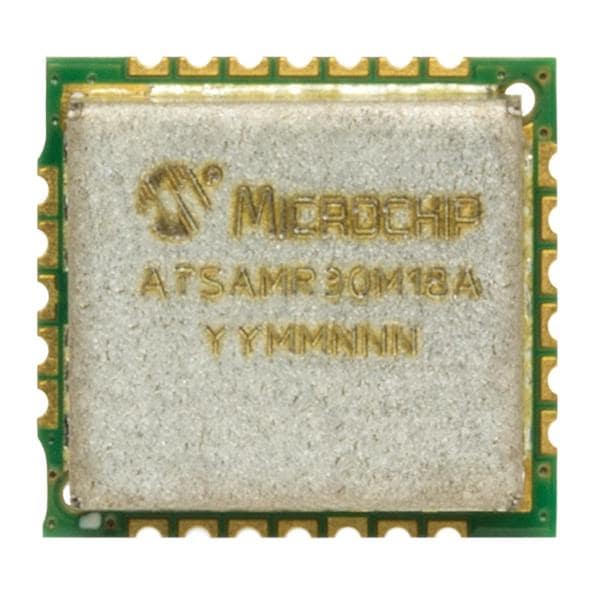

Microchip Technology ATSAMR30M18AT-I/RM100 Sub-GHz 모듈 R30 모듈 - MCU + Sub-GHz 802.15.4 무선

Data Rate: 1 Mb/s

Frequency: 780 MHz, 868 MHz, 915 MHz

Dimensions: 12.7 mm x 11 mm x 2.71 mm

Output Power: 8.7 dBm

Interface Type: Serial

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 10.79 mA

Supply Current Transmitting: 26.97 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
