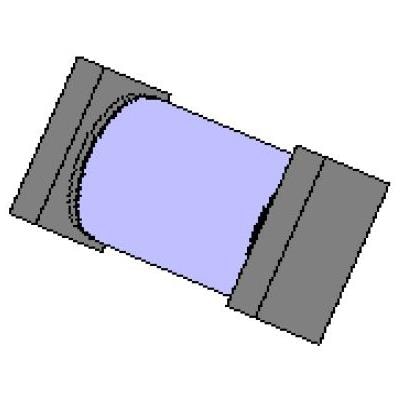

Microsemi JANS1N4981CUS 제너 다이오드 91V 15mA 1.6A 전압 조절기 SQ SMT

Width: 3.76 mm

Height: 3.76 mm

Length: 5.72 mm

Test Current: 15 mA

Zener Current: 52.5 mA

Mounting Style: SMD/SMT

Voltage Tolerance: 2 %

Vz - Zener Voltage: 91 V

If - Forward Current: 1 A

Ir - Reverse Current: 2 uA

Vf - Forward Voltage: 1.5 V

Zz - Zener Impedance: 90 Ohms

Pd - Power Dissipation: 5 W

Voltage Regulation Accuracy: 7.5 V

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 0.1 %/C

Ir - Maximum Reverse Leakage Current: 2 uA
