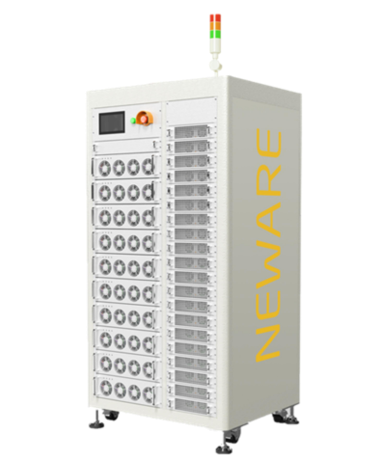

NEWARE CE-6002n-60V1000A-H Battery Test Equipment

Channels information

Channels quantity: 2

Main channel

Channel feature: Constant current source and constant voltage source dual closed loop control

Channel control mode: Independent control

Channel parallel connection: Support max 4 channels parallel mode. Pulse and SIM tests will be disabled in channels parallel mode

Power grid side parameters

Input power supply: AC380V±15% 50/60±5Hz

Power factor: ≥99%(Full load)

THDi: ≤5%(Full load)

Input impedance: ≥1MΩ

Input power: 141.2KW

Input current: 214.5A/single

Overall system efficiency(Max): 90%

Noise ≤65dB

Voltage and current sampling: Four-wire connection (same port for charging and

discharging)

Power control module type: MOSFET

Input power wiring method: Three-phase-five wire system

Power input protection: Anti-surge, anti-islanding, over-under-frequency, overunder-voltage, open-phase protection, etc

The function an dperformance indicators

Voltage

Output range

Charge： 0V～60V

Discharge： 3V～60V

Min discharge voltage: 3V

Accuracy: ±0.02% of FS

Resolution: 24bit

Current

Output range Range1： 60A； Range2： 120A； Range3： 240A； Range4： 1000A

Accuracy (independent range): ±0.05% of FS

CV cut-off current: Range1： 60mA； Range2： 120mA； Range3： 240mA； Range4： 1000mA

Resolution: 24bit

Power

Single channel output power: 60KW

Whole machine output power: 120KW

Time

Current response time: ≤3ms

Current conversion time: ≤6ms

Min. step time 0.1s

Charge/Discharge modes

Charge/Discharge mode

CCC, CVC, CC-CVC, CPC

CCD, CVD, CC-CVD, CPD, CRD

Cut-off condition: Voltage,Current,Δtime,Capacity,-ΔV

Simulation

Charging: Current,Power

Discharge: Current,Power

Switch: Support continuous switching between charge and discharge

Cut-off condition: Time, step line

Steps file lines: 1,000,000

Pulse step

Charge: Current, Power

Discharge: Current, Power

Min pulse: 50ms

Pulse counts: Up to 32

Charge and discharge switch: supported

Cut-off condition: Voltage, ΔTime

DCIR: DCIR by calculation

Data management and analysis

Step setting method: Form editing

Data report

Recording conditions:

Minimum time interval: 10ms(connected with AUX channel:100ms)

Minimum voltage interval: 120mV

Minimum current interval： Range1： 120mA； Range2： 240mA； Range3： 480mA； Range4： 2000mA

Recording frequency: 100Hz(connected with AUX channel:10Hz)

Database: MySQL database

Data output mode: Excel, Txt

Curve type: Templates available, customization supported

Bar code scanning

Support bar-code scanning function

Management and traceability of historical data

The communication mode

The host computer communication mode: Based on TCP/IP protocol

Communication interface: Ethernet

The lower computer communication baud: 1M bandwidth

The host computer communication baud: 10M～ 100M adaptive

Networking mode: Set up local area network through switches and routers

Communication expansion (optional): Support CAN,RS485 communication and BMS communication,with DBC configuration function

Environmental requirements and dimensions and weight

Working temperature: -10℃ ~ 40℃ (with in the range of 25± 5℃, the measurement accuracy is guaranteed:the accuracy drift is 0.005% of FS /℃)

Storage temperature: -20℃~50℃

Relative humidity of working environment: ≤70% RH (no water vapor condensation)

Relative humidity of storage environment: ≤80% RH(no water vapor condensation)

Equipment size W*D*H: 950*800*1950(mm)

Weight About: 485KG
