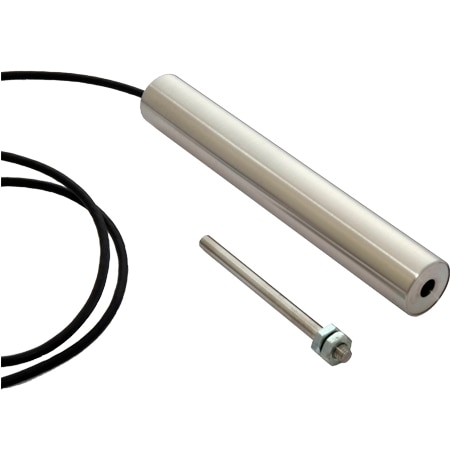

OMEGA LDI-619-032-A010S LVIT 선형 위치 센서

Shock: 1000 g, 11 ms

Bandwidth: 300 Hz (-3 dB)

Vibration: 5 to 20 Hz, 0.5" p-p; 20 to 2000 Hz, 4.2 g p-p

Cable Type: Insulated

Resolution: 0.025% of FS

Output Detail: 0 to 10V output with 12 to 30V input, 35 mA max

Housing Length: 41.3 mm

Supply Voltage: 12 to 30 Vdc

Housing Diameter: 19 mm

Housing Material: Stainless Steel

Measurement, Max: 32 mm

Measurement, Min: 0 mm

Electrical Output: 0 to 10 V

Enclosure Ratings: IP67

Relative Humidity: 95% RH, non-condensing

Additional Features 1: Non-Contact LVIT

Temperature Coefficient: 0.015% of FS/°C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -20 °C
