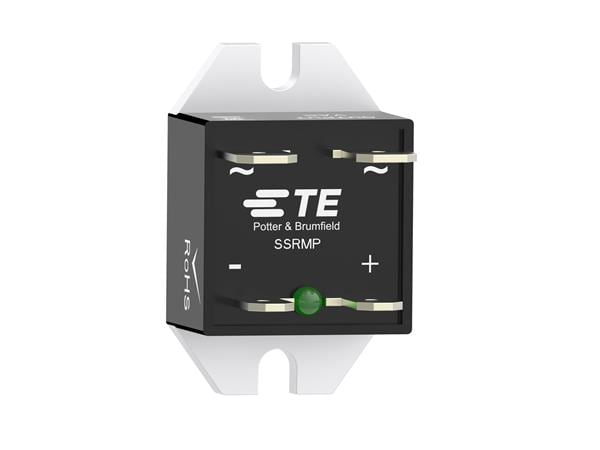

P&B 2323802-2 미니어처 SSRMP SERES, 미니 퓨즈, 16A, 240V AC-DC 입력

Width: 21.8 mm

Height: 23.5 mm

Length: 35.5 mm

Output Type: Triac

Input Current: 1 mA to 20 mA

Mounting Style: Panel Mount

Termination Style: Quick Connect

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 16 A

Load Voltage Rating: 24 VAC to 280 VAC

Control Voltage Range: 4 VDC to 32 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C

Input to Output Isolation Method: Optical
