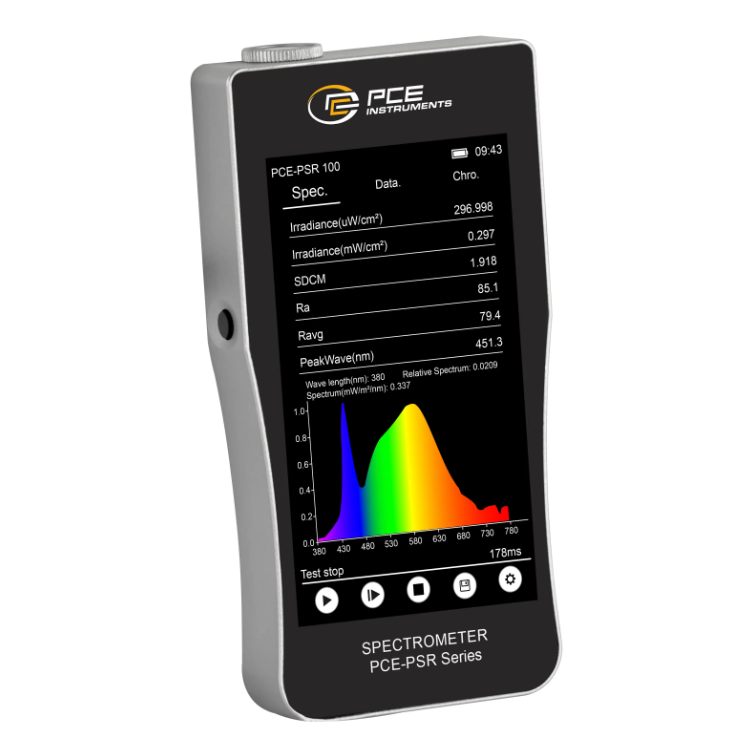

PCE PSR 100 Spectrometer (5~200000 lx; 0.1 lx)

Light

Measurement range up to: 5 ... 200000 lx

Resolution: 0.1 lx

Accuracy: ±0.1 lx

General technical data

Display type: LCD touchscreen

Display size: 5 Inch

Display resolution: 480 x 854

Storage medium: Internal memory

Storage capacity: 8 GB

Memory capacity (additional information): approx. 5000 data records

Interface: USB, BLE switch

Operating time: 20 h

Automatic power-off from...to: 2 ... 60 min.

Automatic power-off can be deactivated: Yes

Reproducibility: ±0.5 nm

Colour spaces: CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (Distribution of Fidelity), TM30 (Change Distribution), TM30 (Rg/Rf)

Wavelength range: 380 ... 780 Nm

Light parameters: CCT (K), Illuminance (lx), Coordinate-x, y, Coordinate-u, v, Coordinate-u', v', PeakWave (nm), CentralWave (nm), DominantWave (nm), CentroidWave (nm), HalfWidth (nm), Darksignal, Peak signal, Purity (%), IntegTime (ms), SDCM, Ra, Ravg, R1-R5, R6-R10, R11-R15, duv, R-ratio (%), G-ratio (%), B-ratio (%), Irradiance (W/m²), Candela (fc), S/P, CIE1931-X, CIE1931-Y, CIE1931-Z, CQS, Rg, Rf, Transmittance (%)

Menu language: English, Chinese, English (GB)

Protection class (device): IP56

Power supply: 100 ... 240V AC | 50/60 Hz

Connector type: Euro plug

Capacity: 4000 mAh

Operating conditions: -10 ... 40 °C , 70 % RH

Storage conditions: -20 ... 45 °C , 70 % RH

Dimensions ( L x W x H ): 160 x 82 x 22 mm

Weight: 390 g
