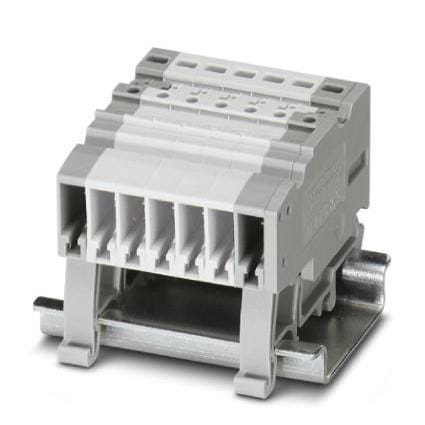

PHOENIX CONTACT 3000652 터미널 커플링 PPC 2,5-NS/1-L

Color: Gray

Pitch: 5.2 mm

Width: 5.2 mm

Height: 32.1 mm

Length: 41 mm

Unit Weight: 5 g

Current Rating: 24 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 500 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 1 Position

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 60 C
