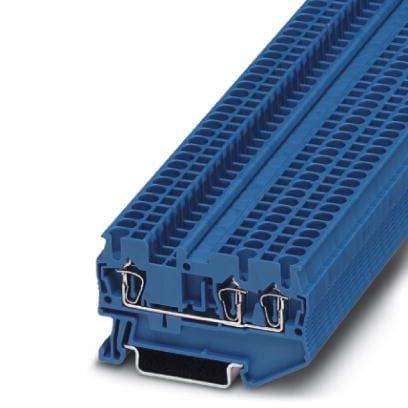

PHOENIX CONTACT 3031254 피드 스루 터미널 블록 ST 2.5-TWIN-BU

Color: Blue

Width: 5.2 mm

Height: 44 mm

Length: 60.5 mm

Unit Weight: 7 g

Current Rating: 24 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 800 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 28 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 28 AWG to 12 AWG

Connection Method: Spring Cage

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
