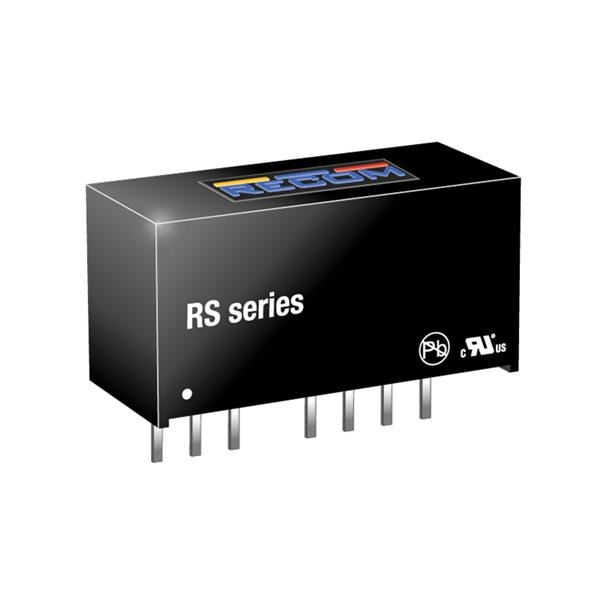

RECOM Power RS-2405DZ 절연형 2W DC/DC 1kV REG 4:1 9-36Vin +/-5Vout

Width: 9.2 mm (0.362 in)

Height: 11.1 mm (0.437 in)

Length: 21.8 mm (0.858 in)

Industry: Industrial

Unit Weight: 4.700 g

Output Power: 2 W

Input Voltage: 9 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 2 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 200 mA

Output Current-Channel 2: 200 mA

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: - 5 V

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C
