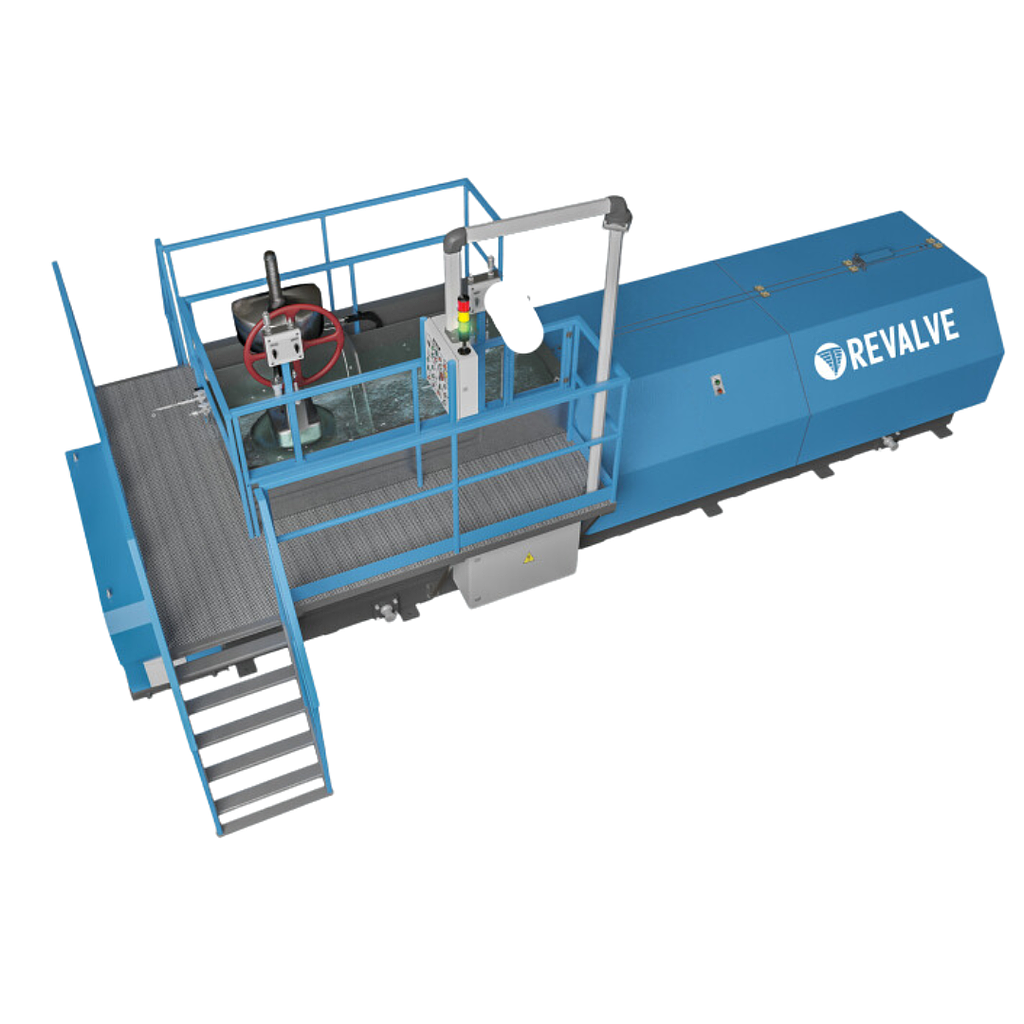

Revalve S-5P-600/500 Test benches for submerged testing of shut off & control valves

Maximum clamping force: 500t

Distance between test tables: 180/1850 (7/73)(min/max), mm

Distance between screw rods (″): 1300 (51)mm

Electric power supply:  400/50 V/Hz

Power consumption: 18kW

Overall dimensions (LхWхH)(″):  6720х3580х3270 (264х148х128) mm

Weight: 12300kg
