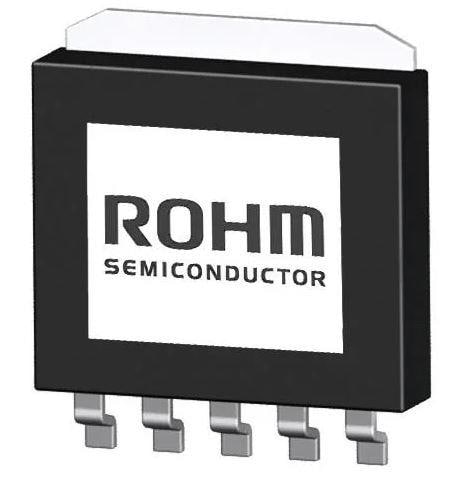

ROHM Semiconductor BA25DD0WHFP-TR 저포화 레귤레이터 LOW DROP-OUT REG 2.0 A

Polarity: Positive

Output Type: Fixed

Unit Weight: 779.167 mg

REACH - SVHC: Details

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 2.5 V

Dropout Voltage: 450 mV

Line Regulation: 15 mV

Load Regulation: 50 mV

Number of Outputs: 1 Output

Input Voltage - Max: 25 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 700 mV

Pd - Power Dissipation: 2.3 W

Ib - Input Bias Current: 2 mA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
