Color: Black
Unit Weight: 1.350 g

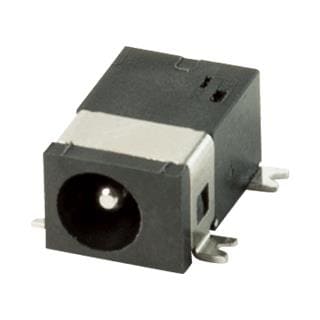

Connector Type: DC Power Jack
Contact Gender: Pin (Male)
Current Rating: 3.5 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 24 VDC
Contact Plating: Nickel
Contact Material: Copper
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.3 mm
Outside Contact Diameter: 3.7 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
