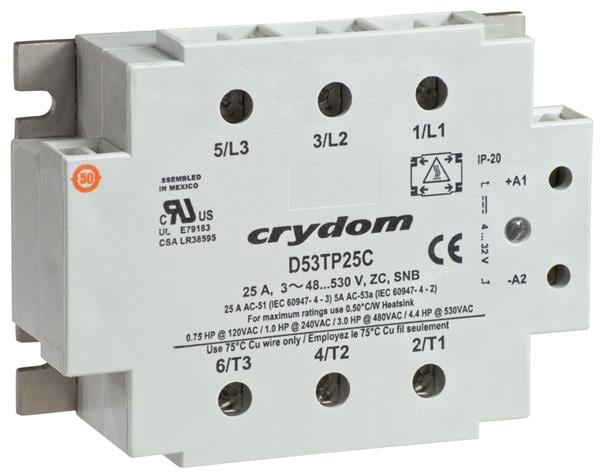

Sensata Technologies - Crydom C53TP25C 인디케이터 IP20, 600VAC, 25A 3상 SSR, ZC

Width: 79.7 mm

Height: 36.83 mm

Length: 101.3 mm

IP Rating: IP20

Output Type: SCR

Unit Weight: 360 g

Contact Form: 3PST (3 Form A)

Input Current: 7 mA to 20 mA

Mounting Style: Panel Mount

Termination Style: Screw

Relay Contact Form: 3 Form A (3PST-NO)

Load Current Rating: 25 A

Load Voltage Rating: 48 VAC to 530 VAC

Control Voltage Range: 180 VAC to 280 VAC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
