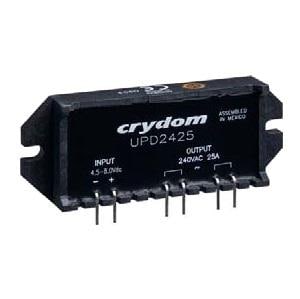

Sensata Technologies - Crydom UPD2425-10 헤비 듀티 UPD 단상 240V / 25A Ran PCB

Width: 12.7 mm (0.5 in)

Height: 28.448 mm (1.12 in)

Length: 78.232 mm (3.08 in)

Compliance: UL; CE

Output Type: SCR

Unit Weight: 42.500 g

Contact Form: DPST (2 Form A)

Input Current: 10 mA

Mounting Style: PCB Mount

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 25 A

Load Voltage Rating: 280 VAC

Control Voltage Range: 3 VDC to 32 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
