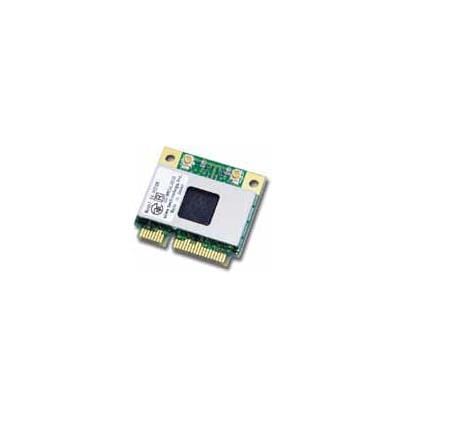

Silex Technology SX-PCEGN(P) WiFi 모듈 802.11b/g/n, 2.4GHz 단일 대역, 2x2 MIMO

Data Rate: 300 Mb/s

Frequency: 2.4 GHz

Dimensions: 30 mm x 26.8 mm x 3 mm

Output Power: 16 dBm, 16.5 dBm, 17.5 dBm

Interface Type: PCIe

Protocol Supported: 802.11 b/g/n

Modulation Technique: DSSS (CCK, DQPSK, DBPSK), DSSS-OFDM (64QAM, 16QAM, QPSK, BPSK)

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 270 mA

Supply Current Transmitting: 630 mA

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
