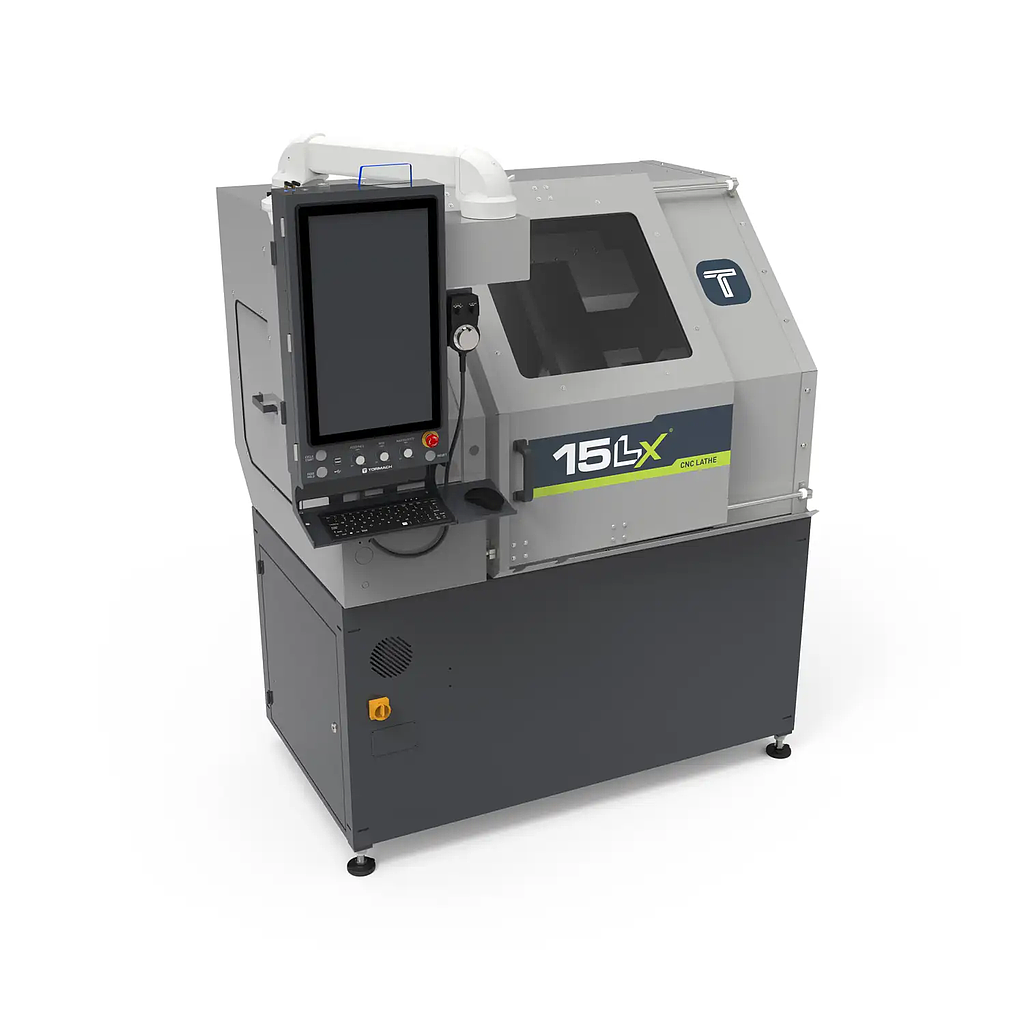

Tormach 15LX LATHE CNC Lathe Machine

Spindle

Continuous Power: 6 hp (4.5 kW)

Peak Power: 10 hp (7.4 kW)

Spindle Speed: Max. 3,500 RPM

Spindle Taper: 5C (With Removable Insert)

Spindle Bore Diameter: 1.53 in. (38.86 mm) (With 5C Insert Removed)

Spindle Nose: D1-4 Camlock Mount

Motion

Maximum Feed Rate (X-Axis): 360 IPM (9.14 m/min)

Maximum Feed Rate (Z-Axis): 360 IPM (9.14 m/min)

EtherCAT Motion System: Closed-Loop, True Position, High-Performance Servos

Power

Power Required: 230 VAC Single-Phase, 30A Breaker

Supplied Plug: NEMA L6-30P plug; requires NEMA L6-30R receptacle

Recommended Voltage: ±10%, best performance at 240 VAC

Machine Specifications

Machine Footprint: 54.75 in. × 38.12 in. × 68.25 in. (1390 mm × 968 mm × 1733 mm)

Typical System Weight: Gang Tool Lathe: 1631 lbs.; Turret Lathe: 1764 lbs.

Swing Over Bed: 15 in. (381 mm) Diameter

Swing Over Carriage: 6.2 in. (157.5 mm) Diameter

X-Axis Travel: 10 in. (254 mm)

Z-Axis Travel: 14 in. (356 mm)

Recommended Chuck Size: 6 in. (152 mm)

Optional Accessories

Full Enclosure: Standard

PathPilot® Touchscreen Operator Console: Standard

Air-Gun Kit: Standard

Washdown Kit: Standard

8-Station Turret: Optional

Gang Tooling System: Optional

Quick Change Tool Post: Optional

Automatic 5C Collet Closer: Optional
