Color: Black
Unit Weight: 600 mg

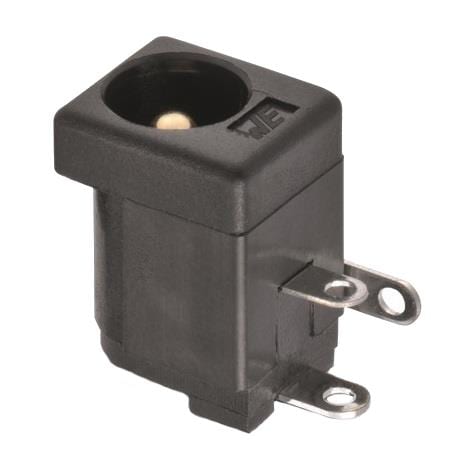

Connector Type: DC Power Jack
Contact Gender: Female
Current Rating: 2 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 30 VDC
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Center Pin Length: 5.7 mm
Termination Style: Solder
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.3 mm
Outside Contact Diameter: 4.2 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
