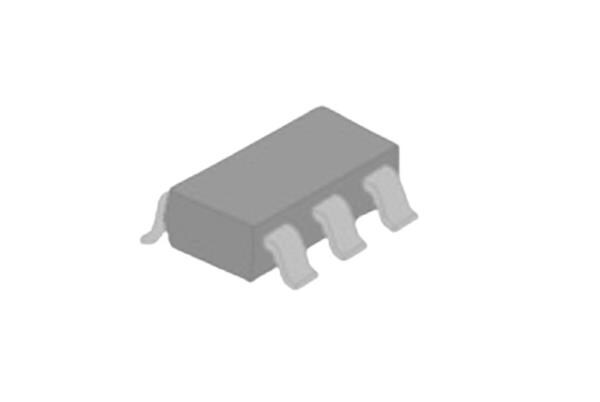

YAGEO XSemi XP2615GEY MOSFETs P-CH -30V -5A SOT-26

Width: 2.9 mm

Height: 1.15 mm

Length: 2.8 mm

Fall Time: 5 ns

Rise Time: 4.5 ns

Technology: Si

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 7 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 2 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 8 ns

Typical Turn-Off Delay Time: 22 ns

Id - Continuous Drain Current: 5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 9 S

Rds On - Drain-Source Resistance: 52 mOhms

Vds - Drain-Source Breakdown Voltage: 30 V

Vgs th - Gate-Source Threshold Voltage: 3 V
