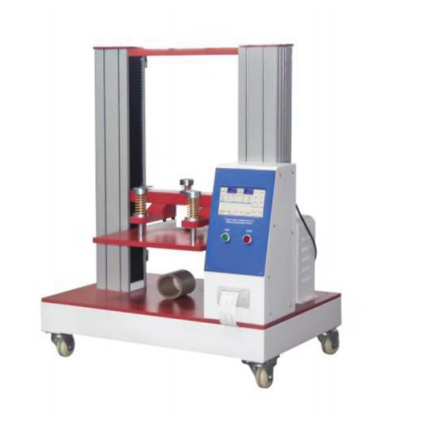

Zenro Test ZR-ZNY-C Corrugated cardboard box compressive strength and stacking testing machine

Control Method: Touch screen control

Pressure Measurement Range: 1T (can be customized according to customers)

Measurement Size Selection: (600 × 800 × 800) mm (can be customized according to customers)

Resolution: 0.1 N

Strength Accuracy: 0.01 N

Deformation Error: ≤ ±1 mm

Scope of Experimental Force Testing: 0.4% – 100% FS

Test Speed: 10 ± 3 mm/min (Stacking: 5 ± 1 mm/min)

Return Speed: 90 mm/min

Unit Exchange: N / lbf / kgf interchange

Test Function: Compressive strength test, fixed value strength test, stacking strength test

Weight: 200 kg

Power Supply: AC 220V, 50Hz
