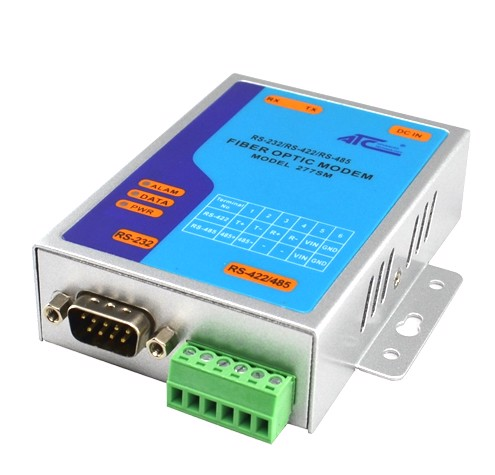

ATC 277SM-SC RS232/422/485 signal converter to SM 20km SC
생산업체: ATC Model: 277SM-SC - 연락처
Interface: SC
Fiber requirements: 50/125μm,100/140μm,200μm.
Transmission distance: SM:20 km,MM:2km
Wavelength: SM:1310 nm,MM:850 nm
Coupled Power Budget: 12.1 dB
Point to point transmission: half-duplex and full-duplex
RS-232/485/422 Port
Interface: DB9-DTE (Male) for RS-232.
6-bit terminal connector for RS-485/422.
RS-232: TXD,RXD,GND
RS-485: 485+,485-
RS-422: TX+,TX-,RX+,RXBaud
rate：300bps ~ 250.4kbps
Lightning protection：RS-232: each line 600W
RS-485/422: each line 1000W
Physical Specifications
Shell: iron (1 mm)
Size: 100mm × 86mm × 26 mm
Weight：0.60kg（full package）
Operating temperature: -20°C to 70°C
Storage temperature: -40°C to 80°C
Working humidity: 5 ~ 95% RH
Power supply: 9-24VDC @ 250mA max.
