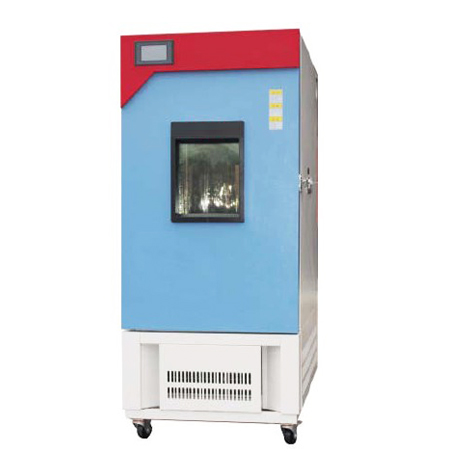

Bonnin LHH-500SDP 약물 안정성 테스트 챔버 (1.5 Kw)

Studio size: 750x600x1100

Dimensions: 1200x780x1700

Install the power: 1.5 Kw

Number of shelves: 4

Door size: 800mm

Temperature range: +10–65℃

Humidity range: 20-95%R.H

Temperature fluctuation: <±0.5℃

Temperature uniformity: <2.0℃

Temperature deviation: <±1.0℃

Humidity deviation: <±3.0%R.H

Temperature and humidity controller: Adopt imported color touch screen temperature and humidity controller, PLC control, stable and reliable control, intuitive display, easy operation, setting data can be locked to prevent arbitrary changes in parameters. Controller set control unit start, the cumulative time, Beijing time display, warning function is equal to one, and real-time print test data, but also store data, U disk export and so on.

Sensor: Industrial temperature sensor Pt100 platinum resistance, humidity sensor imported French capacitive humidity sensor

Data record: Standard micro-printer, real-time print records, recording options curve records or data records, printing interval adjustable

Heating system: Nickel-chromium alloy electric heater

Humidification system: Special electric steam generator

Cooling System: Two fully enclosed refrigeration units, a reasonable system to ensure long-term continuous trouble-free operation (one of the spare)

Dehumidification system: Using a dehumidifier, dehumidifier can be adjusted

The door sealed: Silicone rubber seal, good sealing performance, and effectively cut off the thermal conductivity of the wall and the box

Door handle: The use of buckle-type locking device with a door handle (fishtail type), the switch door convenient, but also can effectively prevent any switch

Waterway system: Hidden tank, the controller automatically prompts when the water tank is dry. Long-term flow of water within the system, effectively avoid the drawbacks of bacteria.

Wireless alarm: Temperature and humidity deviation alarm function, can be connected to multiple devices, and use the TPP function simultaneously notify multiple cell phone numbers

safety protection: Power leakage, short circuit protection, over-temperature equipment, water, water, refrigerator overload and other protection

Standard configuration: ø50 test hole, 8W lighting, vacuum glass observation window, micro printer, U disk, 485 communication interface, wireless wifi alarm, casters, etc.

Optional: Recorder, network interface and so on

Product Standards: Products to meet the ICH2003 Q1A (R2), CP2010 implementation of the standards GB / T10586-2006: Damp heat chamber technical conditions

Power supply: 220V ± 10%, 50Hz,

Liner material: SUS304 mirror stainless steel plate

Shell material: Adopt imported color touch screen temperature and humidity controller, PLC control, stable and reliable control, intuitive display, easy operation, setting data can be locked to prevent arbitrary changes in parameters. Controller set control unit start, the cumulative time, time display, warning function is equal to one, and real-time print test data, but also store data, U disk export and so on.
