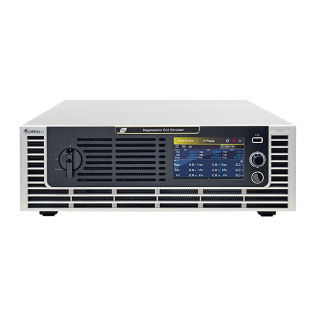

CHROMA 61815 Regenerative Grid Simulator

AC Output Rating

Output Phase: 1 or 3 selectable

Max. Power: 15kVA

Per Phase: 5kVA

Voltage

Range: 0~350VLN / 0~606VLL

Setting Accuracy:0.1%+0.2% F.S.

Resolution: 0.1 V

Distortion:

< 0.5% @ 50/60Hz

< 0.8% @ 30Hz~100Hz

Line Regulation: 0.10%

Load Regulation: 0.20%

Maximum Current (1-phase mode)

RMS: 105A

Peak: 315A

Maximum Current (each phase in 3-phase mode)

RMS: 35A

Peak: 105A

Frequency

Range: 30Hz~100Hz

Accuracy: 0.01%

DC Output (1-phase mode)

Power: 15kW

Voltage: 495V

Maximum Current: 78.75A

DC Output (each phase in 3-phase mode)

Power: 5kW

Voltage: 495V

Maximum Current: 26.25A

Harmonic Synthesis Function

Harmonic Range: up to 50 Harmonic order @ 50/60Hz fundamental frequency

Input Rating

Voltage Operating Range

3Φ200V~220V±10%VLL/47~63Hz

(80% output power)

3Φ380V~480V±10%VLL/47~63Hz

(100% output power)

Current

51A Max./Phase

(3Φ200~240V±10%VLL)

Max. 34A/Phase

(3Φ380~480V±10%VLL)

Power Factor: 0.98 (Typical)

Measurement

Voltage

Range: 0~350VLN

Accuracy: 0.1%+0.2% F.S.

Current

Range (Peak): 315A

Accuracy (RMS): 0.4%+0.3% F.S.

Accuracy (Peak): 0.4%+0.6% F.S.

Power

Accuracy: 0.4%+0.4% F.S.

Others

Efficiency: 87%(Typical)

Protection: OVP, OCP, OPP, OTP, FAN

Safety & EMC: CE (include EMC & LVD)

Dimension (H x W x D): 132.8 x 428 x 700 mm/5.23 x 16.85 x 27.55 inch

Weight: 50 kg/99.21 lbs
