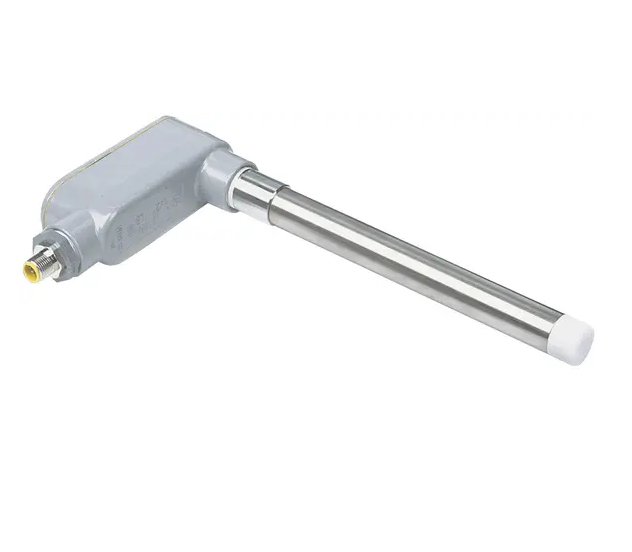

HACH D3422B3 Digital Contacting Conductivity Sensor (0 - 1000 µS/cm)

Accuracy: ± 2 % of reading above 200 µS/cm

Cable Length: 6 m

Cable Length: Standard Probe Cable Length (integral)Digital Probe: 7 m (23 ft.)

Cell Constant k: 0.5 cm-1

Digital Gateway: Integral Digital Gateway

Electrode Material: Titanium

Flow: 0 - 3 m/s (0–10 ft./s), maximum, fully immersed

Installation Kit: 3/4" NPT

Installation Requirement: PVDF

Installation style: Compression

Operating Temperature Range: -20 - 200 °C

Pressure Range: 0 - 300 psi (20.7 BAR)

Range: 0 - 1000 µS/cm

Repeatability: ± 0.5 of reading

Response Time: 90 % of reading within 30 seconds of step change

Sensitivity: ± .05 % of reading

Sensor Cable: Digital: PUR (polyethylene) 5-conductor, shielded, rated to 150°C (302°F)

Sensor Type: Digital

Temperature Compensation: Temperature Compensator: Pt 1000 RTD

Temperature Compensation: Temperature Compensator: Pt 1000 RTD

Temperature Measurement: -20 - 200 °C (-4 - 392°F)

Transmission Distance: 100 m (328 ft.), maximum

Transmission Distance: 1000 m (3280 ft.), maximum when used with a termination box

What's included?: Includes: sensor with cable and manual
