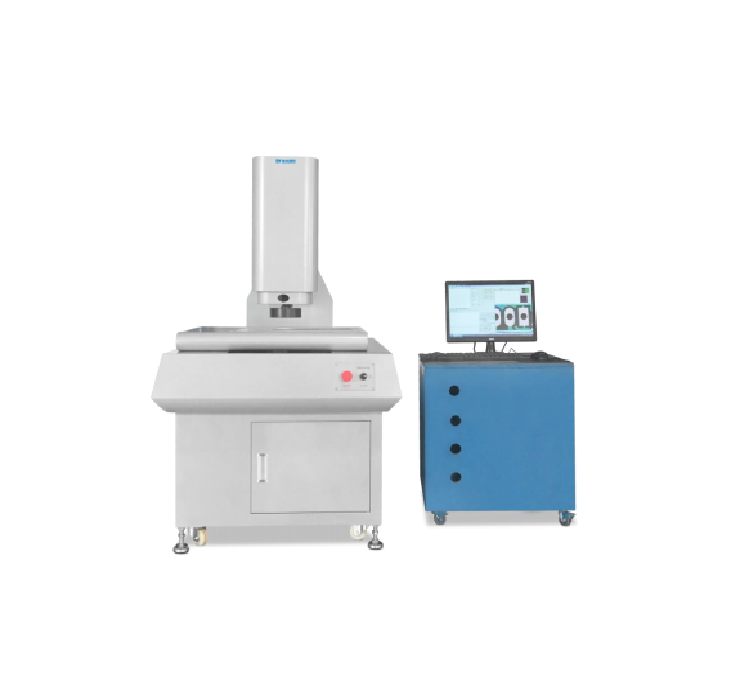

HAIDA HUD-U8060CNC 자동 영상 측정기 (800x600x200mm)

Measuring (mm): 800x600x200

Dimension (mm): 1700x1320x1600

Weight (kg): 680

Accuracy: X,Y： (2.8+L/200) μm

                 Z： (5+L/200) μm

Repeat-ability: 3μm

Grating ruler resolution: 0.001mm

CCD: 1/3"High-resolution color CCD 600TV line(SONY Chip)

Zoom lens: 0.75～4.5X high-definition manual zoom lens

Image magnification: 36～220X

Working distance: 92mm

Measuring software: HUD-CNC

Upper light source: Adjustable 6 ring 8 area surface ring LED cold light source

Under light source: Parallel light design, Promise continuously adjustable LED cold light source

Motor: 200W servo motor

Guide rails: High precision linear guide made in Taiwan

Mode of operation: Program control or joystick

Operating Voltage: Single phase, 220V (AC) 50Hz
