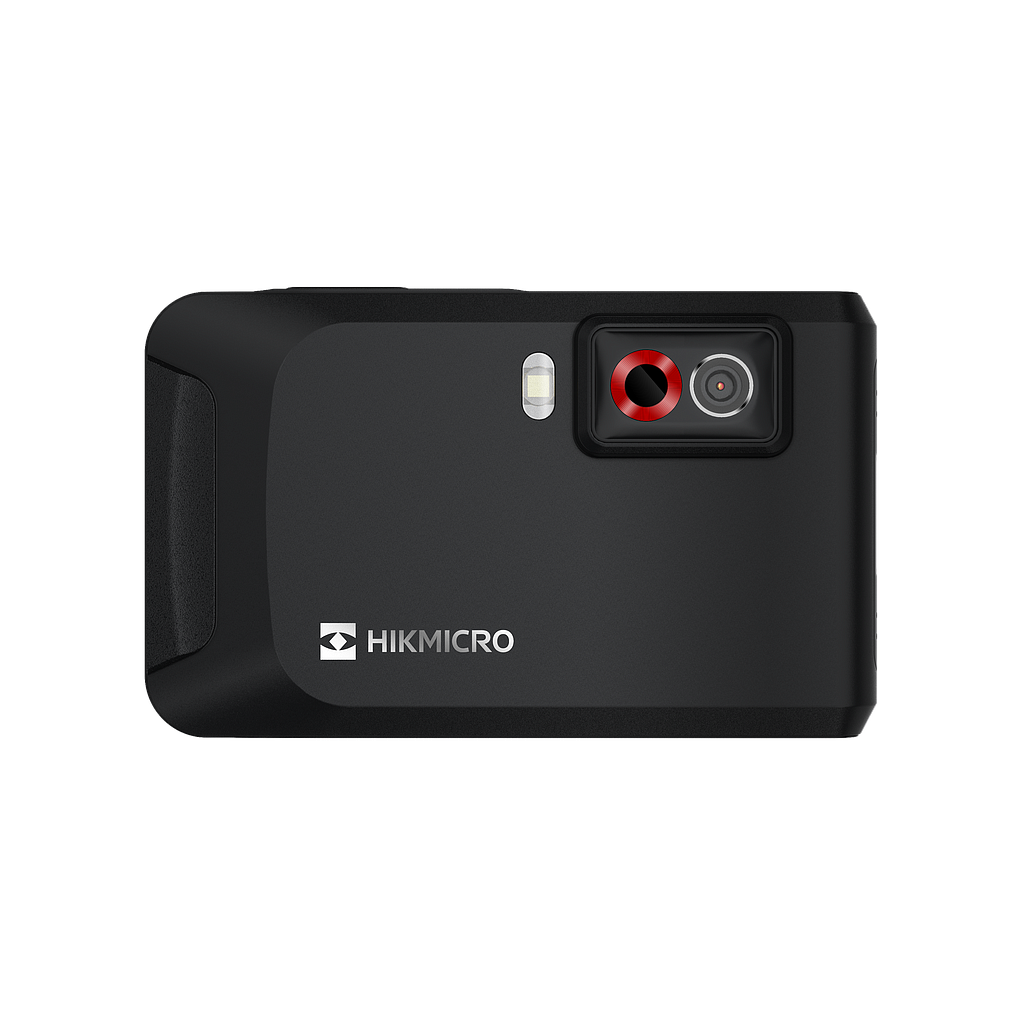

HIKMICRO HM-TP42-3AQF/W-Pocket2 포켓 열화상 카메라 (256x192px; -20~400°C; EMMC 16GB)

THERMAL MODULE

IR Resolution: 256 x 192 (49, 152 pixels)

Spectral range: 8 to 14 pm

NETD: < 0.04°C (40 mKl at 25°C 177°F) ambient temperature, F# = 1.0

Focus: Fixed

FOV (Field of View): 50°H x 37.2°V

IFOV (Spatial Resolution): 3.43 mrad

Image frequency: 25 Hz

Minimum focus distance: 0.3 m 10.98 ft)

F-NUMBER: F1.1

OPTICAL MODULE

FOV (Field of View): 64.6°H x 51.5°V

Picture resolution: Configurable: 2 MP, 5 MP, 8 MP

Video resolution: 640 x 480

Focus: Fixed

IMAGE DISPLAY

Display: 640 x 480 Resolution, 3.5" LCD Touch Screen

Image modes: Thermal/Optical/Fusion/PIP 7

Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain

Digital zoom: 1.0x to 4.0x continuous

Screen brightness: Manual adjustment

MEASUREMENT AND ANALYSIS

Object temperature range: -20°C to 400°C (-4°F to 752°F)

Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature from 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

STORAGE

Storage media: Built-in EMMC (16 GB)

Image storage capacity: Approx. 60,000 images

Image file format: Radiometric.JPEG with measurement data included Thermal.THM.JPEG without measurement data included

Video storage capacity: Approx. 10 h

Video file format: Standard MP4 non-radiometric video

Text note: Max. 200 Characters

POWER SYSTEM

Power supply: 5 VDC/2A (Charging via USBI, fast charging

Power consumption: 1.92 W

Battery Type: Rechargeable Li-ion battery

Battery operating time: 4 hours continuous running per battery lactual life varies depending on settings and usage)

Battery charging time: 1.5 h to 94%, 2.5h to full charge

Battery charging system: In-imager charging, fast charging

GENERAL

Wi-fi: 802.11 b/g/n (2.4 GHz, 5 GHz)

Bluetooth: Bluetooth 4.2

USB interface: USB 2.0, USB Type-C

LED Light (Torch): Yes

Microphone: Yes

Safety: IEC 62368-1: Overvoltage category II, Pollution Degree 2

Language: 21 Languages

Working temperature range: -10°C to 50°C (14°F to 122°F)

Protection level: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Drop test height: 2 m (6.56 ft)

Weight: Approx. 218 g (0.481 lb)

Dimension: 138.5 mm 85.2 mm * 23.6 mm (5.45" x 3.35" x 0.93")
