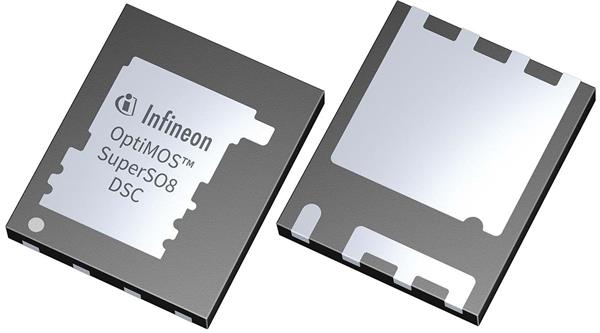

Infineon BSC110N15NS5SCATMA1 MOSFETs TRENCH >=100V
생산업체: Infineon Model: BSC110N15NS5SCATMA1 - 연락처
Fall Time: 2.9 ns
Rise Time: 3.3 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Qg - Gate Charge: 28 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 150 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 10.3 ns
Typical Turn-Off Delay Time: 14.5 ns
Id - Continuous Drain Current: 77 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 58 S
Rds On - Drain-Source Resistance: 11 mOhms
Vds - Drain-Source Breakdown Voltage: 150 V
Vgs th - Gate-Source Threshold Voltage: 3 V
