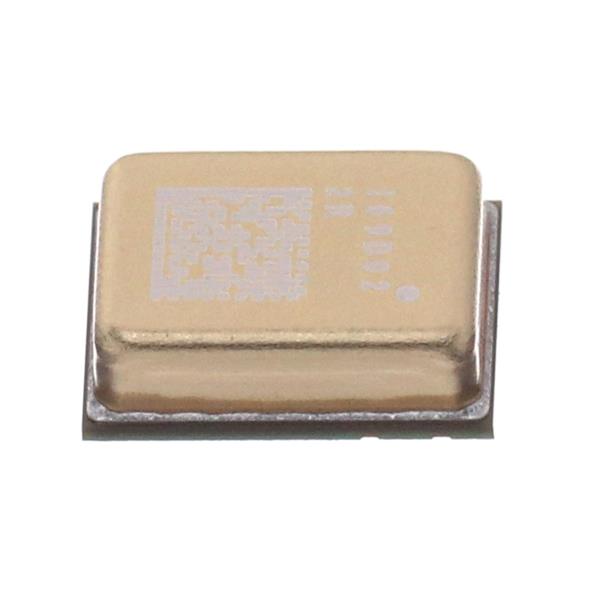

Infineon IM69D120V01XTSA1 Digital MEMS Microphone MIC DBP DIGITAL
생산업체: Infineon Model: IM69D120V01XTSA1 - 연락처
Depth: 1.2 mm
Shape: Rectangular
Width: 3 mm
Length: 4 mm
Port Type: Bottom
Tolerance: 1 dB
Dimensions: 4 mm x 3 mm x 1.2 mm
Technology: MEMS
Output Type: Digital
Sensitivity: - 26 dB
Unit Weight: 34.060 mg
Mounting Style: SMD/SMT
Frequency Range: 2.9 MHz to 3.3 MHz
Termination Style: SMD/SMT
Sound Pressure Level: 118 dB
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.62 V
Directional Properties: Omnidirectional
Operating Supply Current: 980 uA
Operating Supply Voltage: 1.62 V to 3.6 V
SNR - Signal to Noise Ratio: 69 dBA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
