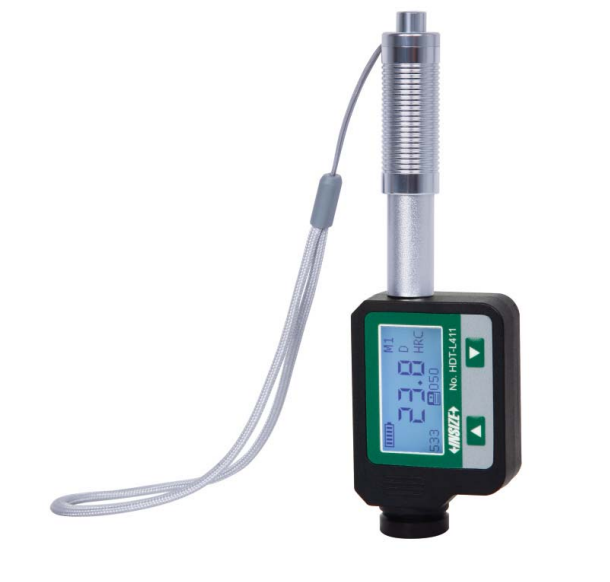

INSIZE HDT-L411 휴대용 Leeb 경도 시험기 (기본 모델)

Features:

Dual-coil probe, high accuracy

Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS)  and tensible strength (SGM)

Dual value display, shows both Leeb and  converted hardness

Automatically caculate Maximun, minimum, average value

Output: USB

Save 999 data

According to ASTM A956, DIN 50156, GB/T 17394


Specifications:

Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1SGM

Accuracy: ±2HLD/±0.3%(when HLD=800)

Measuring range: HL 100-960/HRC 1-74.7/HRB 1.2-140/HB 28-1027/HV 45-1230 HS 4-112/HRA7-88.5/SGM(rm) 118-3315N/mm2

Power supply: 1xAAAbattery

Dimension: 148x45x21mm

Weight: 105g

Operating temperature: -20°C~45°C

Standard delivery: main unit, hardness test block D, cleaning brush, AAAbattery, small supporting ring, USB cable and software disc

Optional Accessory: Supporting rings, hardness test block D (ISH-BHLD)


Details

Applicable workpiece:

Minimum weight: 5kg (direct measurement), 2kg (on soil support), 0.05kg (coupled on plate)

Minimum thickness: 5mm

Minimum radius of curved surface: 30mm

Maximum roughness(Ra): 2μm
