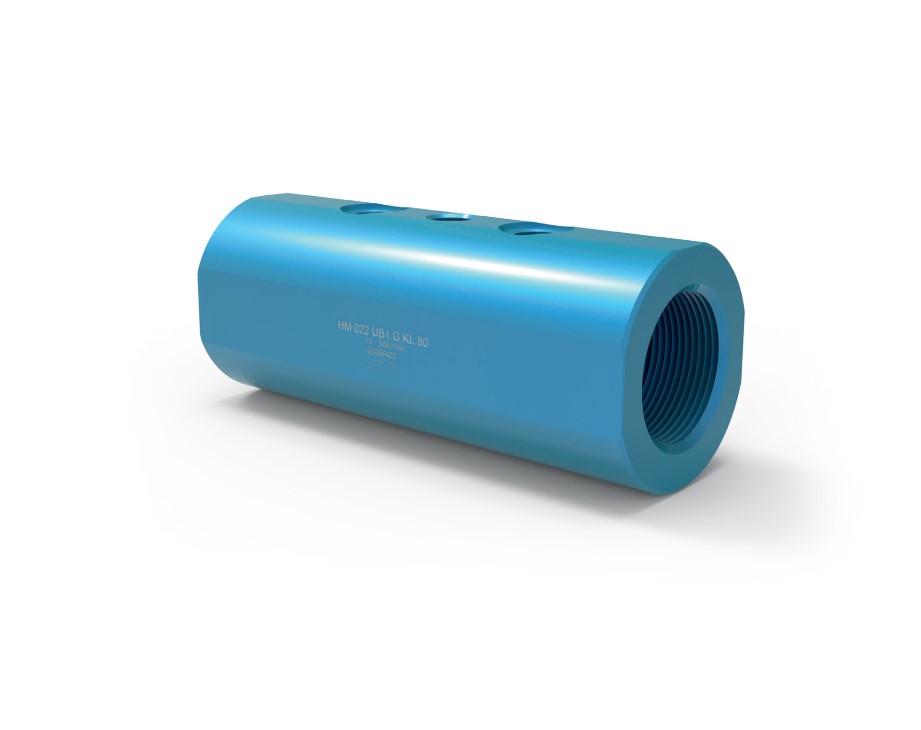

KEM HM 022 U Turbine Flow Meters (15 - 300 L/min)

Technical Data – Sizes

HM types: HM 022 U

Measuring Range (l/min): 15 - 300 L/min

K-Factor (pulses/l): 605 (pulses/l)

Max. Pressure: 420 [6,090] (bar/psi)

Max. Frequency (Hz): 800 Hz

Weight: 1.3 kg

Technical Data – General

Measuring Accuracy: ±0.5%

Repeatability: ±0.5 % (under the same condition)

Linearity: ±2.5 % of actual flow

Viscosity Range: 30 mm2/s

Materials

Housing: as per DIN 3.4365 [EN AW-7075]

Inner parts: as per DIN 1.4305 [AISI 303]

Wheels: as per DIN 1.4122 / 1.4104

Bearing: Stainless steel ball bearing

Medium Temperature: -40 °C up to +120 °C [-40 °F up to +248 °F]

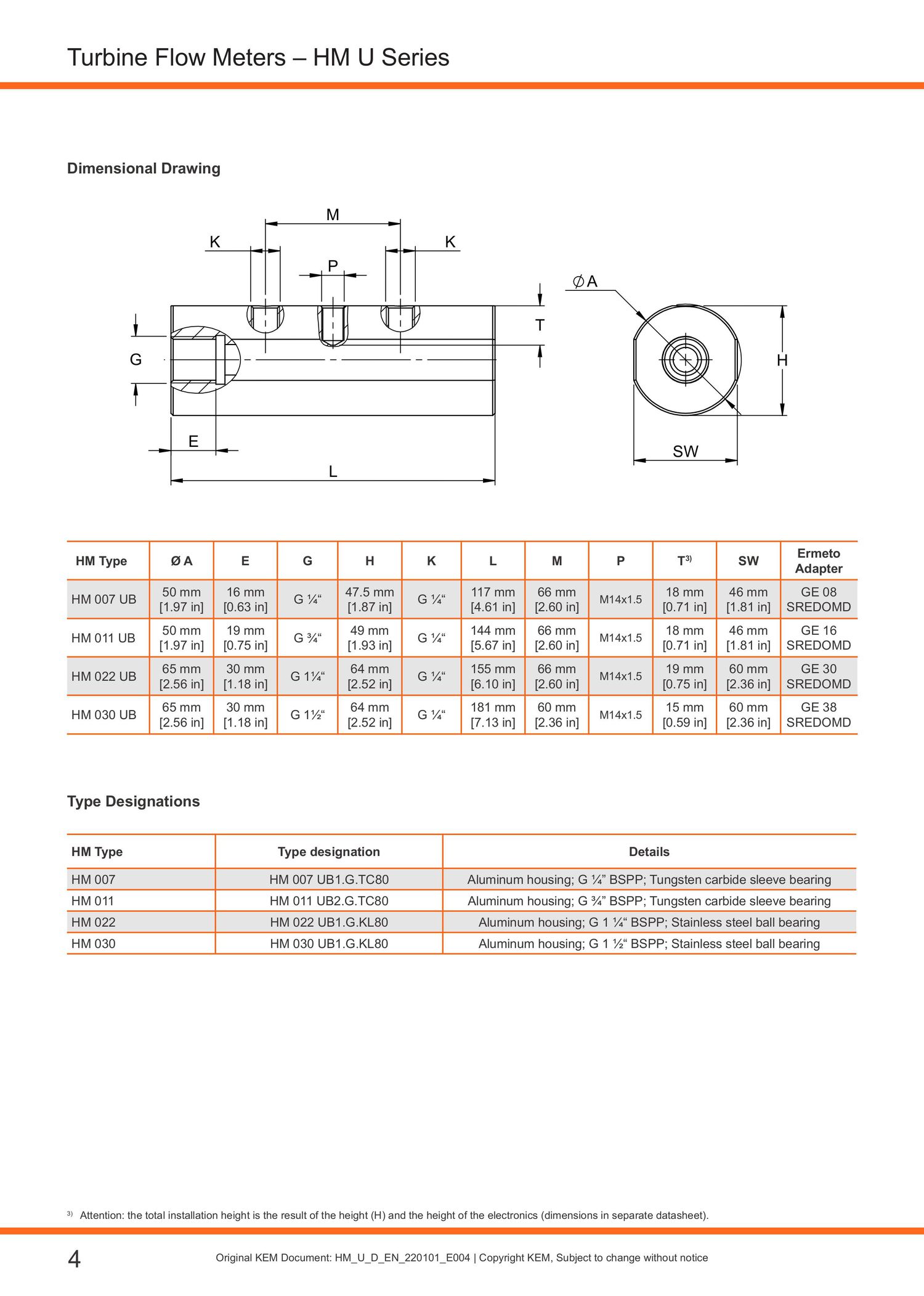

Dimensions: See dimensional drawing

Suitable media: According to PED 2014/68/EU Media group according to Article 13 Group 2

See datasheet for choosing suitable configurations!
