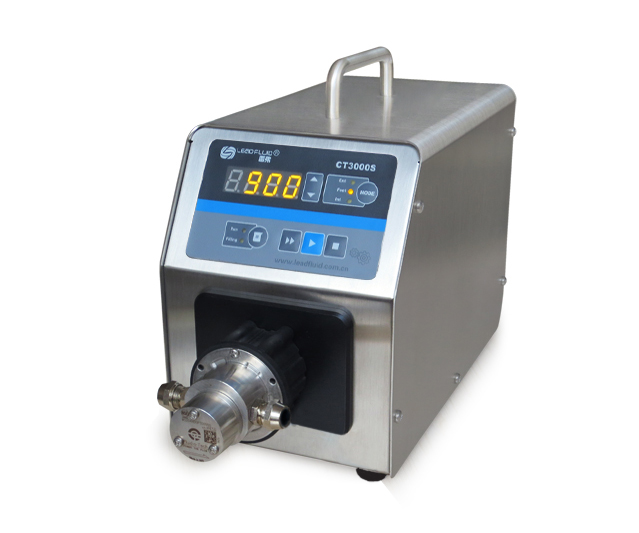

Leadfluid CT3000S 마이크로 기어 펌프 (90-2700 mL/min, 1CH)

  • 생산업체: leadfluid
    Model: CT3000S
    출처: China
    보증: 12 month
    • 견적요구 견적요구
  • 연락처
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Specifications

Flow range: 90-2700ml/min

Speed range: 300-3000rpm/min

Speed resolution: 1rpm/min,accuracy 3%

Adjusting way: Keypad

Display mdoe: 4 LED digital display

Power supply: AC 88-264V 50Hz/60Hz(standard)

consumption: <150W

Working envronment: Environment 0~ 40℃   humidity <80%

Dimension size: 320X150X 237 mm

Drive weight: 5.5kg

IP standard: IP31

Details
Pump headGear materal  Pressure (MPa)Flow range

(MPa)

Liquid temperature℃
MS204XD0PT00000PEEK≤1.490-900-45-120
MS209XD0PT00000PEEK≤0.9180-1800-45-120
MS213XD0PT00000PEEK≤0.8270-2700-45-120
