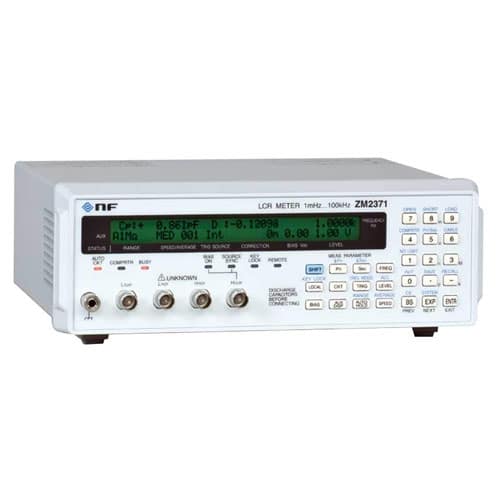

NF ZM2371 LCR 미터 (1 mHz ~ 100 kHz)
생산업체: NF Model: ZM2371 - 연락처
Measurement parameters: Primary : |Z|, |Y|, L, C, R, G; Secondary : Q, D, θ, X, B, Rs, Rp, G, Lp, Rdc
Measurement frequency: 1 mHz to 100 kHz
Basic accuracy: 0.0008
Measurement signal level: 10 mVrms to 5 Vrms, 1μArms to 200 mArms
DC bias: Internal: 0 to +2.5 V; External: ± 40V ( using an optional DC bias voltage adapter)
Measurement time: 2 ms or more (at 1 kHz)
Contact check: －
Low capacitance check: －
Comparator: 9 bins
Multi-measurement: －
Interface: USB, RS-232
Handler interface: －
Software: Application software for remote control and data acquisition
Details
