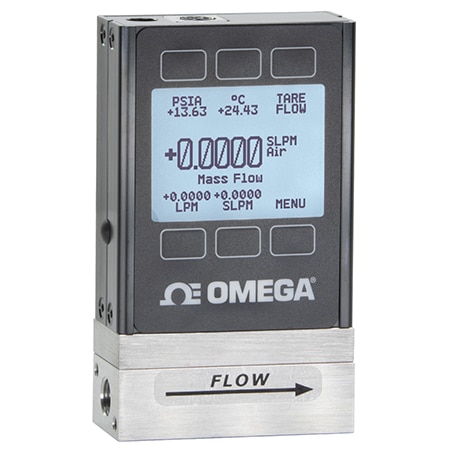

OMEGA FMA-1622A-I 질량 및 체적 유량계 (2000 SLM, ± 0.8 %, 3/4 in, NPT Female)

Width: 1.1 in

Height: 4.1 in

Accuracy: ± 0.8 %

Span Shift: 0.02% FS/°C/atm

Calibration: NIST 5-Point Certificate

Display Type: LCD

Accuracy Note: ± (0.8% of rdg + 0.2% FS)

Output Signal: Current

Repeatability: ± 0.2%

Response Time: 10 ms

Data Interface: RS232

Humidity Range: 0 to 100% RH non-condensing

Supply Current: 35 mA

Supply Voltage: 15 to 30 Vdc

Turndown Ratio: 200:1

Electrical Output: 4 to 20 mA

Materials, Wetted: Aluminum, Brass, Epoxy, FKM, Glass, Gold, Silicone, Stainless Steel

Supply Power Note: 35 mA typical current draw; 100 mA available supply recommended

Pressure Drop, Min: 1 psi

Response Time Note: 10 ms typical default response time for 63.2% of a step change. A variable register allows response time to be field adjustable to a certain extent via RS232 communications. The primary trade-off for response time is signal noise

Media Compatibility: Air, Gases, Nitrogen, Oxygen

Measurable Flow Rate: 125%

Additional Features 1: Power Supply Included

Electrical Connection: 8-pin mini DIN

Operating Pressure, Max: 145 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 3/4 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 2000 SLM

Volumetric Flow Rate, Min: 0.05 SLM

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -10 °C
