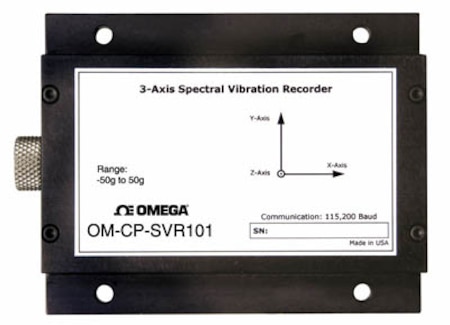

OMEGA OM-CP-SVR101 Spectral Vibration Data Logger, Part of the NOMAD® Family (0 psi, 1/4 in)

Width: 26 mm

Height: 112 mm

Length: 26 mm

Memory: 3,971 Samples

Weight: 340 g

Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)

Approvals: CE

Materials: Aluminum

Resolution: Acceleration : 0.05 g

Calibration: Digital calibration through software and automatically recorded within device

Memory Note: 16 Mbit (3,971 samples)

Start Modes: Delayed Start, Immediate Start

Battery life: 60 hr

Accuracy Note: Time Accuracy : ±1 minute/month (at 20ºC, RS232 port not in use)

Pressure Type: N/A

Pressure, Max: 0 psi

Sampling Rate: 0.5 Hz (2 seconds between updates)

Time Accuracy: ±1 minute/month

Data Interface: USB

Humidity Range: 0 to 95% RH non-condensing

Millivolt Range: N/A

Measurement Type: Vibration, Acceleration

Supply Power Type: Battery

Acceleration Range: ± 50 g

Sampling Rate Note: 256 Hz (decimated to 128 Hz), FFT Period: 2 secs up to 4 hrs

Real Time Recording: May be used with PC to monitor and record instantaneous acceleration in real time

Calibration Accuracy: Accelerometer : ±1 g

Battery Size and Type: Li-ion, 9V

Number of Measurements: 4

Process Connection Size: 1/4 in

Process Connection Type: N/A

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
