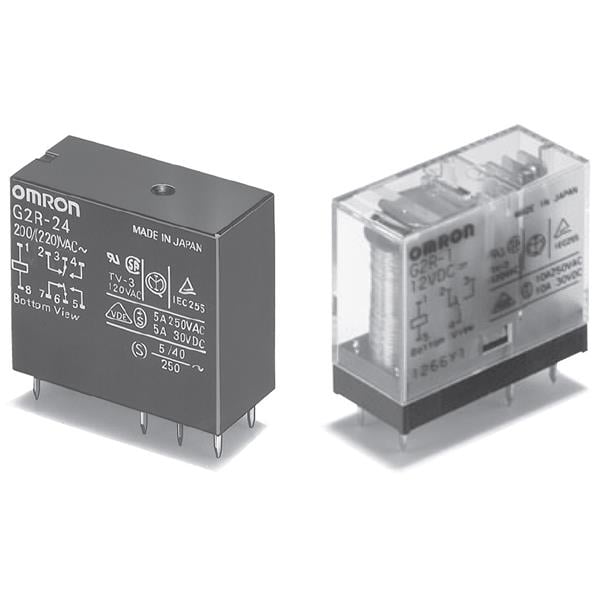

Omron Electronics G2R-1A-H DC24 High Sensitivity PCB POWER RELAY
생산업체: Omron Electronics Model: G2R-1A-H DC24 - 연락처
Width: 12.7 mm
Height: 25.5 mm
Length: 29 mm
Coil Type: Non-Latching
Unit Weight: 17 g
Coil Current: 15 mA
Coil Voltage: 24 VDC
Contact Form: SPST (1 Form A)
Mounting Style: Through Hole
Coil Resistance: 1.6 kOhms
Coil Termination: Solder Pin
Contact Material: Silver Cadmium Oxide (AgCdO)
Power Consumption: 360 mW
Switching Voltage: 380 VAC, 125 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 5 A
Maximum Switching Current: 5 A
