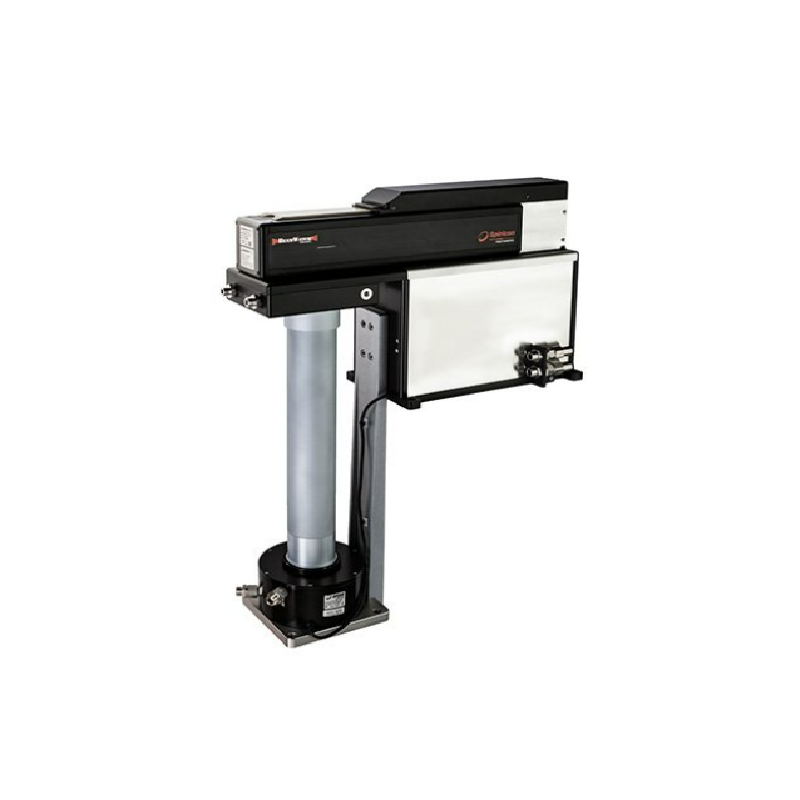

Ophir BW-Integrated-500-NIR-155-Ethernet/IP 고출력 빔 프로파일링 (980 - 1080 nm, 500 W - 9999 W)
생산업체: Ophir Model: BW-Integrated-500-NIR-155-Ethernet/IP P/N: SP90529 - 연락처
Wavelengths: 980-1080nm
Camera field of view inside the unit: 32.17 mm x 8.55 mm
Interface: EtherNet/IP & GigE
Power range: 500 W – 9999 W (up to 30 kW on request)
Power supply: 24 Volts DC, 5 Amps max
Max Beam Diameter at Entrance/Exit: 12.5mm
Distance between focus and power meter: 500 mm
Power sensor response time: 2.7 s max for 9999 W
Weight: ~20kg
Dimension: 553 mm x 682 mm x 172 mm
Compliance: CE, UKCA, China RoHS
