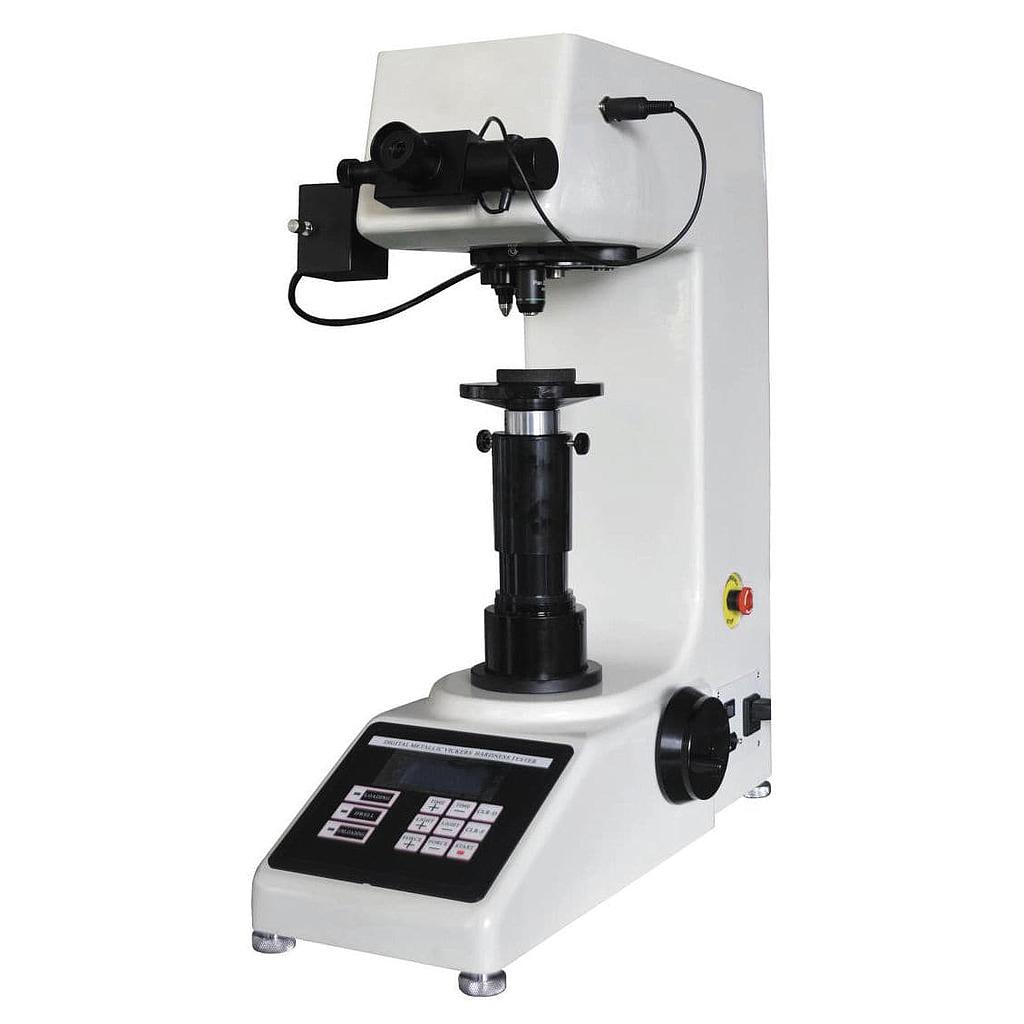

TIME TH724 디지털 마이크로 비커스 경도 시험기 (1HV~2967HV)

Test force:

2.94n(0.3kgf), 4.90n(0.5kgf), 9.80n(1kgf), 19.6n(2kgf), 24.5n(2.5kgf), 29.4n(3kgf), 49n(5kgf), 98n(10kgf)

Test Range: 1HV~2967HV

Loading Method: Automatic (Loading/Dwell/Unloading)

Shifting between Objective and Indenter: Manual

Total Magnification: 100×, 400×

Resolution: 0.25μm, 0.0625μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-y Test Table

Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm

Max. Height of Specimen: 170mm

Throat: 130mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6507, ASTM E92, jIS Z2244, GB/T 4340.2

Dimension:

530×280×630mm

Packing Dimension: 620×450×740mm

Weight (kg) net Weight: 35

Gross Weight: 47

Standard Delivery

Instrument Main Body

Diamond Vickers Indenter

Cross Test Table

4 x Horizontal Regulating Screw

2 x Fuse 1A

Inner Hexagon Spanner 2.5mm

Hardness Block 700~800 HV1

Anti-dust Cover

10× Digital Measuring Eyepiece

10×、40× Objective

Power Cable

Level

Halogen Lamp 12V、15~20W

Screw Driver

Hardness Block 700~800 HV10

Usage Instruction Manual
