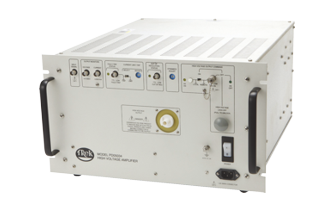

Trek PD05034-H 고전압 증폭기 (200/230V)
생산업체: TREK Model: PD05034-H 출처: USA 보증: 12 Month - 견적요구
- 견적요구
- 연락처
Line Voltage: 200/230V
Output Voltage Range: 0 to ±7.5 kV DC or peak AC
Output Current Range: 0 to ±50 mA DC with a 0 to ±160 mA peak current capability for 50 μs
Input Voltage Range: 0 to ±7.5 V DC or peak AC
Input Impedance: 10 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 5 V rms*
Slew Rate (10% to 90%: Greater than 1000 V/µs
Settling Time: Less than 50 µs for a 0 to 7.5 kV step
Large Signal Bandwidth (3% distortion): DC to greater than 15 kHz
Small Signal Bandwidth (-3dB): DC to greater than 75 kHz
Dimensions: 279 mm H x 482 mm W 654 mm D
Weight: 24,9 Kg
