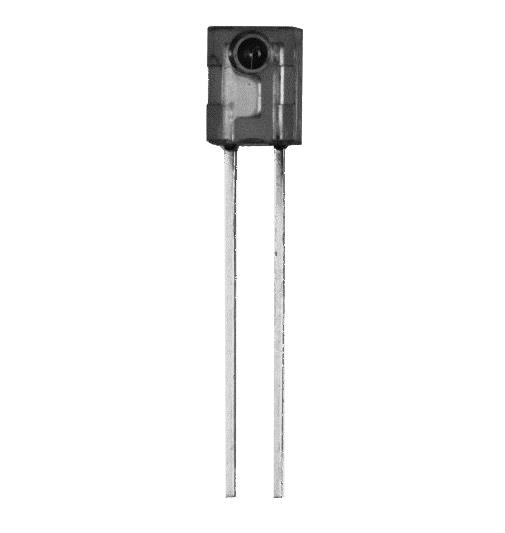

TT Electronics / Optek Technology OP555B NPN Silicon Phototransistor Photo Transistor
생산업체: TT Electronics / Optek Technology Model: OP555B - 연락처
Width: 2.67 mm
Height: 6.22 mm
Length: 4.57 mm
Wavelength: 935 nm
Dark Current: 100 nA
Mounting Style: Through Hole
Peak Wavelength: 935 nm
Lens Color/Style: Blue
Pd - Power Dissipation: 100 mW
Half Intensity Angle Degrees: 28 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 4.7 mA
Collector- Emitter Voltage VCEO Max: 30 V
Collector-Emitter Breakdown Voltage: 30 V
Collector-Emitter Saturation Voltage: 400 mV
