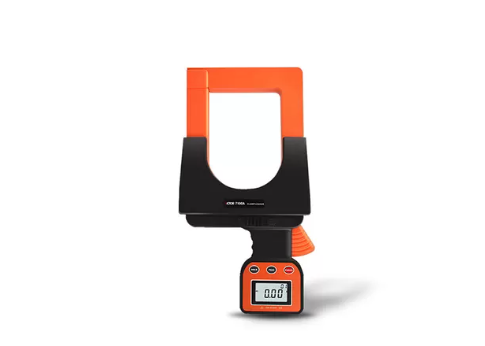

VICTOR 7100 누설 전류 클램프 미터 (AC 0.0mA～3200A)

Range: AC 0.0mA～3200A

Resolution: AC 0.1mA

Measurement Accuracy (23℃±3℃, below 70%RH, measured wire at the center of the clamp) AC 0.0mA～499A ±2%±5dgt

AC 500A～999A ±3%±5dgt

AC 1000A～2999A ±4%±5dgt

AC 3000A～4000A ±5%±5dgt

Power: 6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)

Weight of Meter: 1.5kg (with batteries)

Dimension: Length 350mm* width 180mm * thickness 55mm

Clamp Size: 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires)

Sample Rate: About 2 times/second

Frequency: 50Hz ,60Hz automatic identification

Communication Wire: RS232 communication wire, 1.8m

Data Storage: 99 sets, “FULL” symbol indicate the memory is full

Data Hold: “HOLD” symbol appears

Overflow: “OL” symbol appears
