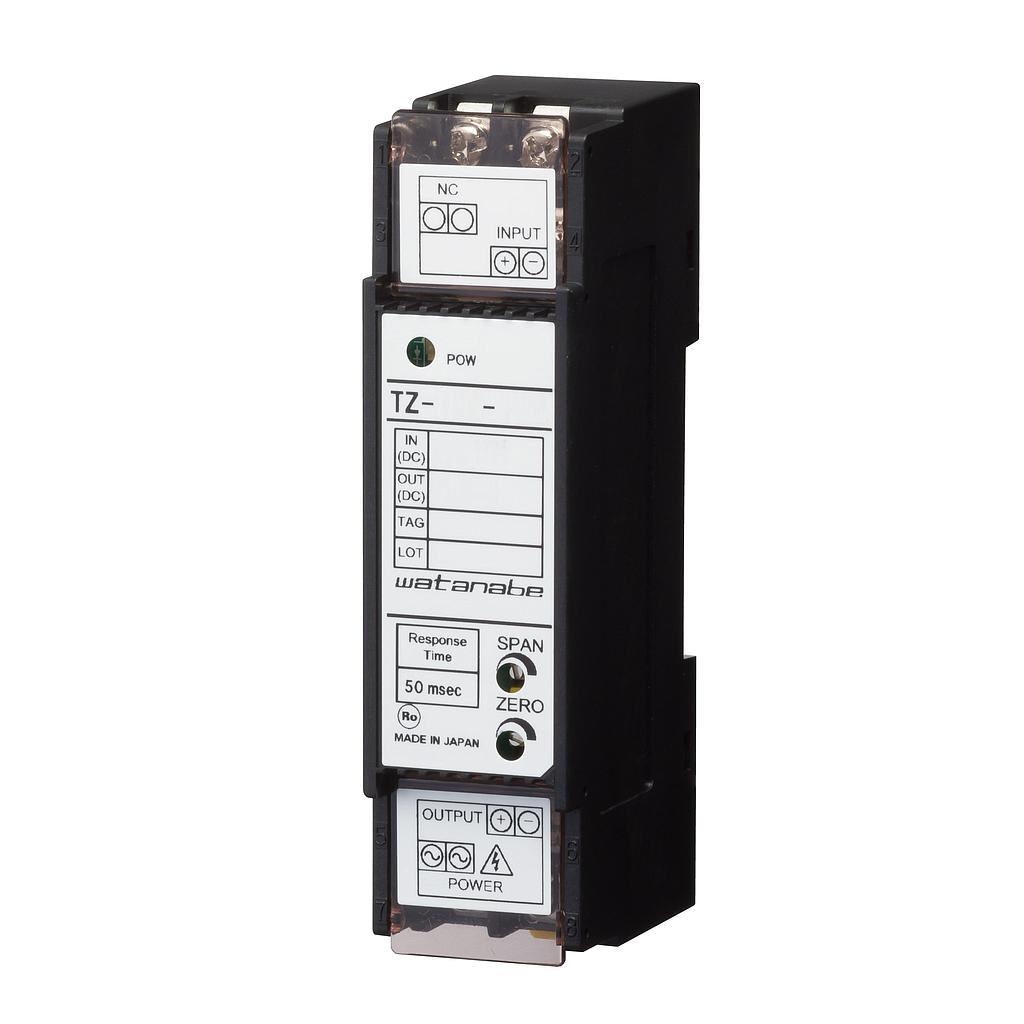

Watanabe TZ-41 터미널 타입 트랜스미터
생산업체: Watanabe Model: TZ-41 출처: Japan 보증: 12 Month - 연락처
- Signal input: 0 to 20mA; 4 to 20mA; or 0 to 5mA
- Signal output: 0 to 20mA; 4 to 20mA; or 0 to 5mA
- Input current: Max. 30mA
- Load: 1kΩ or less
- Voltage loss between input and output: Approx. 3.3V
- Output Ripple: Less than 0.5% (20mA at 250W)
- Temp. Coefficient: Less than +/-100PPM/°C
- Accuracy: +/-0.1% (23°C +/- 1°C) at 250W load
- Additional Error: +/-0.1%/100W at load 250W
- Operating temp.: -5 to +50°C, less than 90%RH
- Mechanical Design: Type of snap mount on DIN rail
- Insulated Resistance: More than 100MW at 500VDC between input and output
- Dielectric strength : 1 min. at 2kVAC between input and output
- Weight : Approx. 80g
